Forward and reverse compaction. Working width 50-75 cm. Self tightening clutch-for long v-belt life. Reinforced and strengthened base plate, especially designed for tough jobs. Easy to mount transport wheels. Ideal compactor for confined areas. Especially suitable for compaction in utility trenches, along highways, parking areas along foundations, walls and abutments. Handle locks in one swift motion, allowing easy transport in the upright position. Extra strong anti-vibration mounting brackets. SPECIFICATIONS Reversible Plate Compactor Frame Reversible Plate Compactor Frame Model Name RP 2414 Petrol Plate Size W x L (mm) 500 x 642 Centrifugal Force (kg) 2400 Compaction Area (m²/hr.) 600 Dry Weight (kg) 149 Country of Origin India Engine Engine Engine Model Name GX160 Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25° Net Power kW (hp) @ rpm 3.6 ( 4.8 ) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.6 Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 15.1 Dimensions L x W x H (mm) 312 x 362 x 346

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology. SPECIFICATIONS Welder Frame Welder Frame Model Name Welder EGWG220DC Frame Type Compact Max. AC output (kVA) @ Single Phase 4 Strike Voltage (V) 65 - 85 Voltage/ Frequency (V/Hz) 230 / 50 Alternator DC Welder Electrode Diameter (mm) up to 5 Max. Welding Current (Amps) @ % Duty Cycle 220 at 35% Welding Current Adjustment Range (Amps) 40 to 200 Control Panel Manual Starting System Recoil Dimensions L x W x H (mm) 770 x 570 x 580 Engine Engine Engine Model Name GX390T2 QX Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 8.7 (11.7) @ 3600 Cont. rated power kW (hp) @ rpm 6.4 ( 8.6 ) @ 3000, 7.0 ( 9.4 ) @ 3600 Maximum Net Torque (N•m @ rpm) 26.4 @ 2500 Compression ratio 8.2 : 1 Displacement (cc) 389 Bore X Stroke (mm) 88 x 64 Fuel Tank Capacity (L) 6.10 Fuel cons. at cont. rated power (L/h @ rpm) 3.1 L/h @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Oil Alert Available Recommended Oil Grade SAE 10W-30 API SE or higher Starting System Recoil Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 31.7 Dimensions L x W x H (mm) 406 x 460 x 448

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology. SPECIFICATIONS Welder Frame Welder Frame Model Name Welder EGWG180AC Frame Type Compact Max. AC output (kVA) @ Single Phase 3 Strike Voltage (V) 46 - 60 Voltage/ Frequency (V/Hz) 230 / 50 Alternator AC Welder Electrode Diameter (mm) up to 4 Max. Welding Current (Amps) @ % Duty Cycle 180 @ 35% Welding Current Adjustment Range (Amps) 40 to 130 Control Panel Manual Starting System Recoil Dimensions L x W x H (mm) 720 x 490 x 550 Engine Engine Engine Model Name Honda GX270 Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 8.4 @ 3600 Cont. rated power kW (hp) @ rpm 4.6 ( 6.2 ) @ 3000, 5.1 ( 6.8 ) @ 3600 Maximum Net Torque (N•m @ rpm) 19.1 @ 2500 Compression ratio 8.5 : 1 Displacement (cc) 270 Bore X Stroke (mm) 77 x 58 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 5.3 Fuel cons. at cont. rated power (L/h @ rpm) 2.4 L/h @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Oil Alert Available Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 25.8 Dimensions L x W x H (mm) 381 x 428 x 422

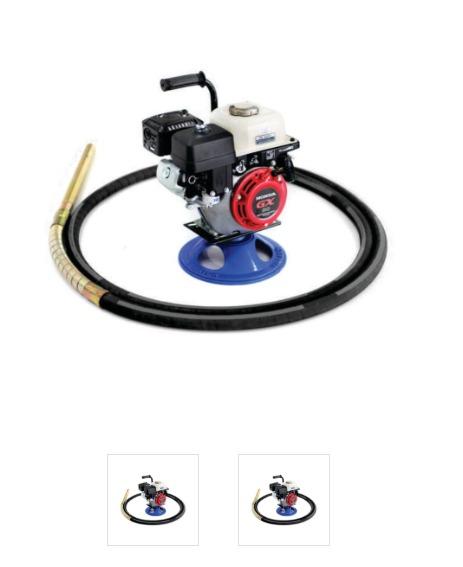

Enhance the quality and durability of your concrete structure with our high-performance Concrete Vibrator. Designed for professional use, this tool ensures optimal consolidation by eliminating air bubbles and voids, resulting in a denser, more robust concrete structure. Its powerful Engine and ergonomic design provide efficient and comfortable operation, making it ideal for a variety of construction applications. Whether you’re working on foundations, slabs, or columns, HI+ Concrete Vibrator is your go-to solution for achieving superior concrete finishes. SPECIFICATIONS Vibrator Frame Vibrator Frame Needle Dia. (mm) 60 Flexible Shaft Length (m) 6 Base Plate Revolving (PVC) Engine Engine Engine Model Name GX160 Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25° Net Power kW (hp) @ rpm 3.6 ( 4.8 ) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.6 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 15.1 CV60-160 HI+ Concrete Vibrator Powered by Honda The HI+ Concrete Vibrator Powered by Honda, model CV60-160, is a heavy-duty concrete vibrator, highly suitable for heavy construction work. This model will do the job quickly and effectively with the time tested professional and durable Honda GX160 engine. It’s perfect for those larger projects that require intensive vibration for the best compacting of concrete. KEY FEATURES • High Displacement: With 163 cc displacement, the HI+ Concrete Vibrator Powered by Honda, model CV60-160, packs enough punch to handle demanding construction tasks. • High Power Performance: Net power rating of 3.6 kW / 4.8 hp at 3600 rpm gives the Plate Compactor the muscle to compact even the stiffest concrete mixes efficiently. • Heavy Vibration: Rated power of 2.9 kW / 3.9 hp at 3600 rpm provides heavy, continuous vibration to the plate for optimum concrete settlement. • Larger Needle for Larger Jobs: The 60 mm needle diameter makes the HI+ Concrete Vibrator Powered by Honda, model CV60-160, ideal for large concrete pours, reducing air bubbles and ensuring a solid finish. • Versatility and Reach: With the 6-meter flexible shaft and easy-to-use click housing type, the operator is able to cover large areas quickly and efficiently. APPLICATION The HI+ Concrete Vibrator Powered by Honda, model CV60-160, is ideal for large construction projects, including commercial buildings, large slabs, and infrastructure projects that involve deep and thorough compaction of concrete. With its mighty power and efficiency, it will be an indispensable tool for construction experts to achieve quality on a large scale.

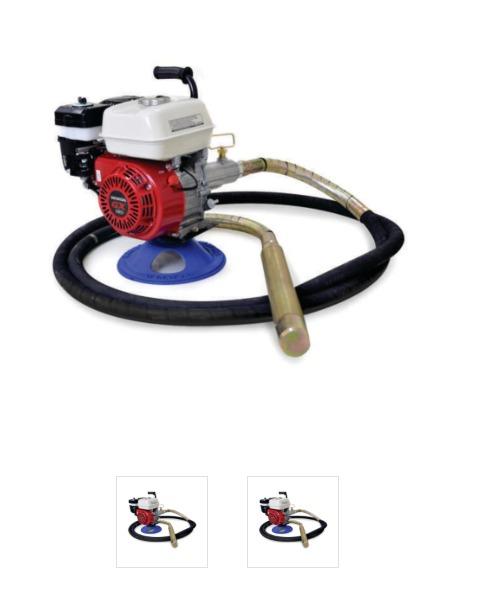

Enhance the quality and durability of your concrete structure with our high-performance Concrete Vibrator. Designed for professional use, this tool ensures optimal consolidation by eliminating air bubbles and voids, resulting in a denser, more robust concrete structure. Its powerful Engine and ergonomic design provide efficient and comfortable operation, making it ideal for a variety of construction applications. Whether you’re working on foundations, slabs, or columns, HI+ Concrete Vibrator is your go-to solution for achieving superior concrete finishes. SPECIFICATIONS Vibrator Frame Vibrator Frame Needle Dia. (mm) 40 Flexible Shaft Length (m) 6 Base Plate Revolving (PVC) Engine Engine Engine Model Name GX80 Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25° Net Power kW (hp) @ rpm 1.5 ( 2.0 ) @ 3600 Cont. rated power kW (hp) @ rpm 1.2 ( 1.6 ) @ 3600 Compression ratio 9.0:1 Bore X Stroke (mm) 46 x 48 Fuel Type Unleaded Petrol Fuel cons. at cont. rated power (L/h @ rpm) 0.6 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.36 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 11.1 Dimensions L x W x H (mm) 275 x 342 x 323

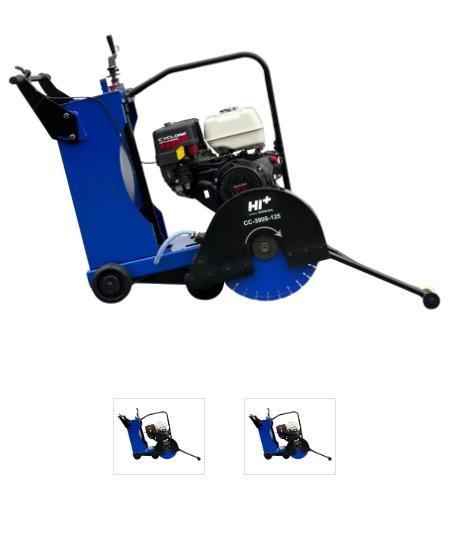

Engineered for Precision. Built to Last. Introducing the all-new HI+ Concrete Cutter, powered by the heavy-duty Honda GX390 professional-grade engine delivering a robust 8.6 kW of power. Designed for performance and durability, this machine features a reinforced frame, a high-strength cutting blade with a precision cutting depth of up to 125 mm, and a large water tank for smooth, dust-free operation. With an adjustable handle for effortless depth control, the HI+ Concrete Cutter ensures accuracy, efficiency, and long-lasting reliability — making it the perfect partner for tough construction jobs. SPECIFICATIONS Concrete Cutter Frame Concrete Cutter Frame Model Name CC-390S-125 Drive System Belt Blade Diameter (mm) 406 Max. Cutting Depth (mm) 125±5 Water Tank Metal Water Tank Capacity (L) 30 Dry Weight (kg) 140 Country of Origin India Engine Engine Engine Model Name GX390T2 QX Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 8.7 (11.7) @ 3600 Cont. rated power kW (hp) @ rpm 9.5 (13) @ 3600 Maximum Net Torque (N•m @ rpm) 26.4 @ 2500 Compression ratio 8.2 : 1 Displacement (cc) 389 Bore X Stroke (mm) 88 x 64 Fuel cons. at cont. rated power (L/h @ rpm) 3.1 @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast Iron Sleeve

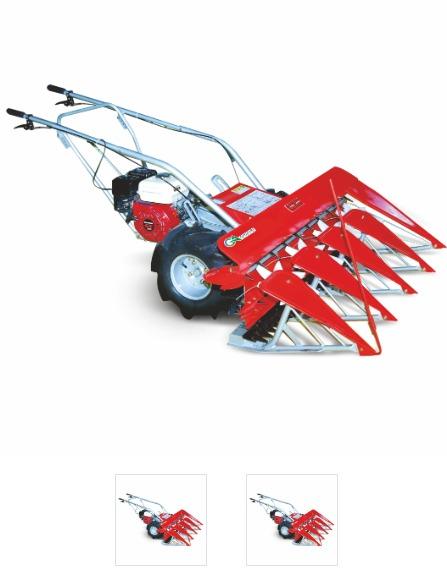

Wide harvest coverage with power packed performance it can reap large areas in very less time. Quick & Efficient crop harvesting, Efficient cutting mechanism to harvest crops like wheat, Rice, Johar, Maize etc. it is easy to use and maintain, has good fuel efficiency, and quires low cost of operations. SPECIFICATIONS Power Reaper Frame Power Reaper Frame Model Name Gayathri Power Reaper PRH - 160 Maximum Power kw (hp) @ rpm 4.8 @ 3600 Transmission 1 Forward / 1 Reverse Cutting Height (cm) 1.0 to 2.0 Cutting Width (mm) 1200 Conveyor Mechanism Chain drive & Star Wheel (4 Rows) Field Coverage (Acre/hrs.) 1.3 / 1.7 Operating Speed (km/hrs.) 2.9 Dry weight (kg) 120 (approx.) Engine Engine Engine Model Name GX160 Engine Type 4-stroke, OHV, single cylinder inclined by 25° Net Power kW (hp) @ rpm 3.2 (4.3) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 (3.4) @ 3000, 2.9 (3.9) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.60 Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast iron sleeve Engine Weight Dry (kg) 15.1 Dimensions L x W x H (mm) 312 x 362 x 346

Wide harvest coverage with power packed performance it can reap large areas in very less time. Quick & Efficient crop harvesting, Efficient cutting mechanism to harvest crops like wheat, Rice, Johar, Maize etc. it is easy to use and maintain, has good fuel efficiency, and quires low cost of operations. SPECIFICATIONS Power Reaper Frame Power Reaper Frame Model Name Gayathri Power Reaper PRH - 200 Maximum Power kw (hp) @ rpm 5.5 @ 3600 Transmission 1 Forward / 1 Reverse Cutting Height (cm) 1 to 2 Cutting Width (mm) 1200 Conveyor Mechanism Chain drive & Star Wheel (4 Rows) Field Coverage (Acre/hrs.) 1.3 / 1.7 Operating Speed (km/hrs.) 2.9 Dry weight (kg) 120 (approx.) Engine Engine Engine Model Name GX200 Net Power kW (hp) @ rpm 4.1 ( 5.5 ) @ 3600 Cont. rated power kW (hp) @ rpm 3.3 ( 4.4 ) @ 3000 rpm, 3.7 ( 5.0 ) @ 3600 Compression ratio 8.5 : 1 Bore X Stroke (mm) 68 x 54 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.7 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.60 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 16.1 Dimensions L x W x H (mm) 321 x 376 x 346

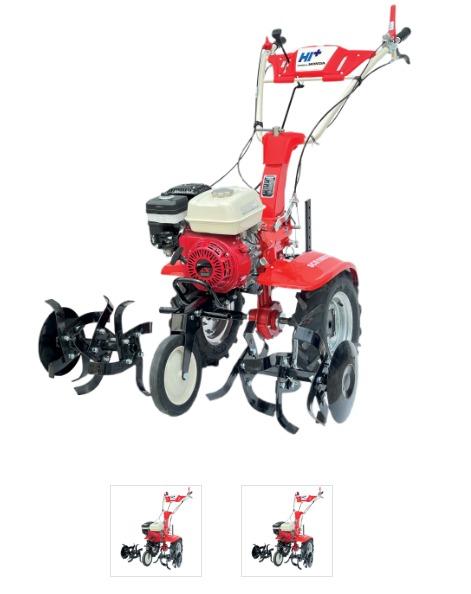

Power Weeder is engineered for professional soil cultivation and weed management in small farms, nurseries and horticultural plots. Its robust GX-series engine and adjustable, heat-treated tines effortlessly break up compacted ground and uproot deep-rooted weeds, while the depth-control lever ensures consistent tilling across varying soil conditions. SPECIFICATIONS Tiller Tiller Tilling Depth Adjustment (inch) 6 Standard Handle Height (Feet) 3 Recommended Transmission Oil SAE 10W-30 API SE or higher Transmission 2 Forward, 1 Reverse Gear Dry Weight (kg) 87 Engine Engine Engine Model Name GX200 Net Power kW (hp) @ rpm 4.3 ( 5.8 ) @ 3600 Cont. rated power kW (hp) @ rpm 3.7 ( 5.0 ) @ 3600 Compression ratio 8.5:1 Displacement (cc) 163 Bore X Stroke (mm) 68 x 54 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.7 @ 3600 Ignition System Transistorised Engine Oil Capacity (L) 0.6 Starting System Recoil (el. start optional) Engine Dry Weight (kg) 16.1 Dimensions L x W x H (mm) 321 x 376 x 346

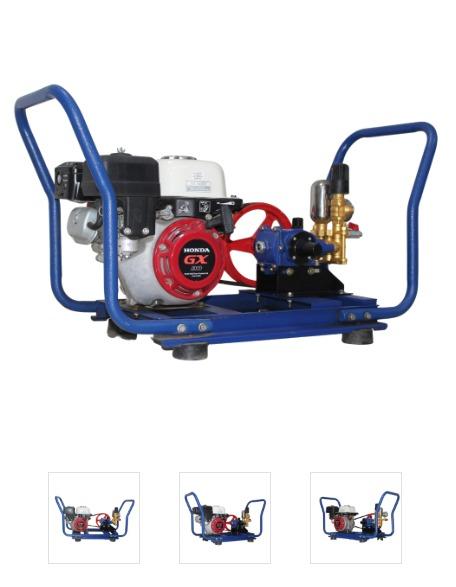

Boost your farming efficiency with our Agriculture HTP Sprayer. Engineered for high-pressure spraying, this versatile tool is perfect for applying pesticides, herbicides, and fertilizers. Its robust construction ensures durability, while the adjustable nozzle provides precise spray patterns for various crop needs. Easy to operate and maintain, our HTP Sprayer is an essential addition to any agricultural toolkit, helping you achieve healthier, more productive crops with minimal effort. SPECIFICATIONS HTP Sprayer Frame HTP Sprayer Frame Model Name HTP160F Sprayer Model AS-26 No. of Plungers 3 Suction Capacity (L/m) 26 Pump Speed (rpm) 950 Max Pressure (psi) 400 Working Pressure (psi) 300 - 400 Required (hp) 3 - 5 Dry weight (kg) 12 Engine Engine Engine Model Name GX160 Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 3.6 (4.8) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.60 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 15.1 Dimensions L x W x H (mm) 312 x 362 x 346

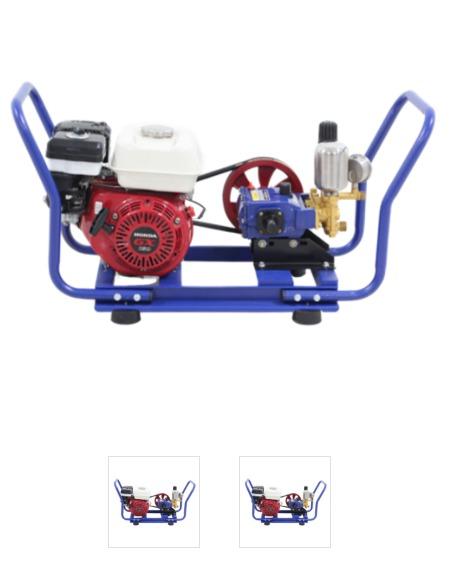

A high-performance sprayer designed with a strong and sturdy frame, the HTP Sprayer 80F is lightweight, compact, and easy to carry. It features a high-pressure output, adjustable spray gun, and is ideal for agricultural and horticultural spraying applications. HTP Sprayer Frame HTP Sprayer Frame Model Name HTP80F Sprayer Model AS-16 No. of Plungers 3 Suction Capacity (L/m) 16 Pump Speed (rpm) 950 Max Pressure (psi) 400 Working Pressure (psi) 200 - 300 Required (hp) 1.5 Dry weight (kg) 10 Engine Engine Engine Model Name GX80D Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 1.5 (2.0) @ 3600 Cont. rated power kW (hp) @ rpm 1.0 ( 1.3 ) @ 3000, 1.2 ( 1.6 ) @ 3600 Compression ratio 9.0 : 1 Displacement (cc) 79.7 Bore X Stroke (mm) 46 x 48 Fuel Tank Capacity (L) 1.5 Fuel cons. at cont. rated power (L/h @ rpm) 0.6 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.36 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 11.1 Dimensions L x W x H (mm) 275 x 342 x 323

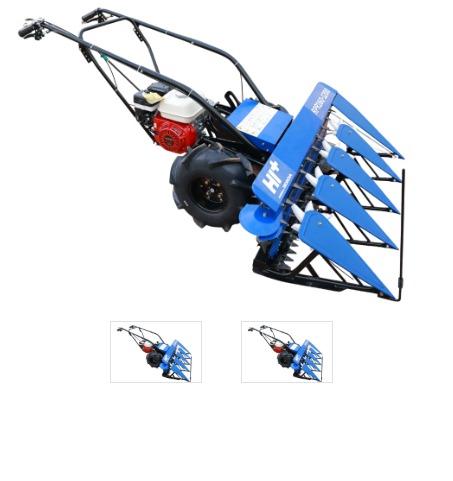

Wide Harvest Coverage - With a power packed performance it can reap large areas in very less time. Quick & Efficient Crop Harvesting - Efficient cutting mechanism to harvest crops like Wheat, Rice, Johar, Maize etc. Save Labor Cost - Saves the labor cost of multiple people. Low Cost of Operation - It is easy to use and maintain, has good fuel efficiency and requires low cost to operate. SPECIFICATIONS Power Reaper Frame Power Reaper Frame Model Name RPR160-1200 Maximum Power kw (hp) @ rpm 4.8 @ 3600 Transmission 1 Forward / 1 Reverse Cutting Height (cm) 2.54 to 5.08 Cutting Width (mm) 1200 Conveyor Mechanism Chain drive & Star Wheel (4 Rows) Field Coverage (Acre/hrs.) 1.3 / 1.7 Operating Speed (km/hrs.) 2.9 Dry weight (kg) 120 (approx.) Engine Engine Engine Model Name GX160 Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25° Net Power kW (hp) @ rpm 3.2 (4.3) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 (3.4) @ 3000, 2.9 (3.9) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.60 Recommended Oil Grade SAE 10W-30 API SE or higher Engine Weight Dry (kg) 15.1 Dimensions L x W x H (mm) 312 x 362 x 346
