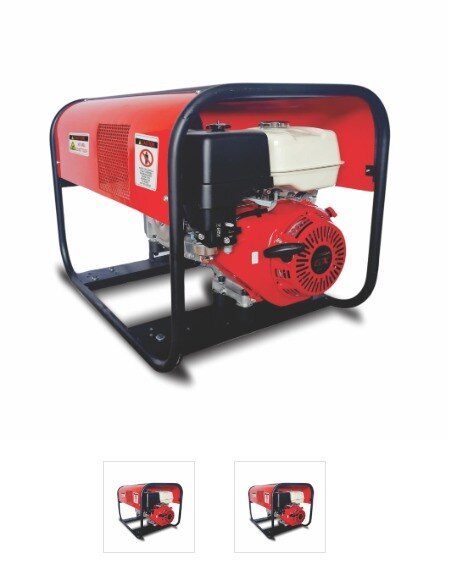

Welder EGWG180AC

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology.

SPECIFICATIONS

Welder Frame

Welder Frame

Model Name Welder EGWG180AC

Frame Type Compact

Max. AC output (kVA) @ Single Phase 3

Strike Voltage (V) 46 - 60

Voltage/ Frequency (V/Hz) 230 / 50

Alternator AC Welder

Electrode Diameter (mm) up to 4

Max. Welding Current (Amps) @ % Duty Cycle 180 @ 35%

Welding Current Adjustment Range (Amps) 40 to 130

Control Panel Manual

Starting System Recoil

Dimensions L x W x H (mm) 720 x 490 x 550

Engine

Engine

Engine Model Name Honda GX270

Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft

Net Power kW (hp) @ rpm 8.4 @ 3600

Cont. rated power kW (hp) @ rpm 4.6 ( 6.2 ) @ 3000, 5.1 ( 6.8 ) @ 3600

Maximum Net Torque (N•m @ rpm) 19.1 @ 2500

Compression ratio 8.5 : 1

Displacement (cc) 270

Bore X Stroke (mm) 77 x 58

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 5.3

Fuel cons. at cont. rated power (L/h @ rpm) 2.4 L/h @ 3600

Ignition System Digital CDI with variable ignition timing

Engine Oil Capacity (L) 1.1

Oil Alert Available

Recommended Oil Grade SAE 10W-30 API SE or higher

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 25.8

Dimensions L x W x H (mm) 381 x 428 x 422
