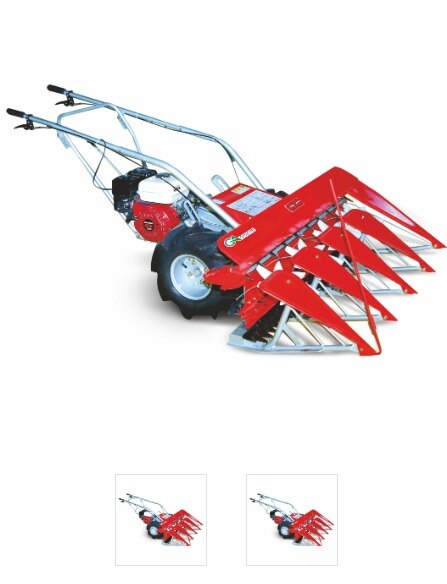

Power Reaper PRH - 200

Wide harvest coverage with power packed performance it can reap large areas in very less time. Quick & Efficient crop harvesting, Efficient cutting mechanism to harvest crops like wheat, Rice, Johar, Maize etc. it is easy to use and maintain, has good fuel efficiency, and quires low cost of operations.

SPECIFICATIONS

Power Reaper Frame

Power Reaper Frame

Model Name Gayathri Power Reaper PRH - 200

Maximum Power kw (hp) @ rpm 5.5 @ 3600

Transmission 1 Forward / 1 Reverse

Cutting Height (cm) 1 to 2

Cutting Width (mm) 1200

Conveyor Mechanism Chain drive & Star Wheel (4 Rows)

Field Coverage (Acre/hrs.) 1.3 / 1.7

Operating Speed (km/hrs.) 2.9

Dry weight (kg) 120 (approx.)

Engine

Engine

Engine Model Name GX200

Net Power kW (hp) @ rpm 4.1 ( 5.5 ) @ 3600

Cont. rated power kW (hp) @ rpm 3.3 ( 4.4 ) @ 3000 rpm, 3.7 ( 5.0 ) @ 3600

Compression ratio 8.5 : 1

Bore X Stroke (mm) 68 x 54

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 3.1

Fuel cons. at cont. rated power (L/h @ rpm) 1.7 @ 3600

Ignition System Transistor Type Magneto Ignition

Engine Oil Capacity (L) 0.60

Recommended Oil Grade SAE 10W-30 API SE or higher

Engine Weight Dry (kg) 16.1

Dimensions L x W x H (mm) 321 x 376 x 346
