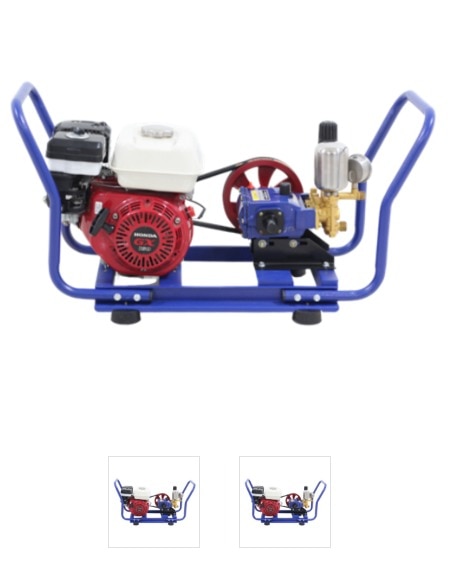

HTP Sprayer HTP160F

Boost your farming efficiency with our Agriculture HTP Sprayer. Engineered for high-pressure spraying, this versatile tool is perfect for applying pesticides, herbicides, and fertilizers. Its robust construction ensures durability, while the adjustable nozzle provides precise spray patterns for various crop needs. Easy to operate and maintain, our HTP Sprayer is an essential addition to any agricultural toolkit, helping you achieve healthier, more productive crops with minimal effort.

SPECIFICATIONS

HTP Sprayer Frame

HTP Sprayer Frame

Model Name HTP160F

Sprayer Model AS-26

No. of Plungers 3

Suction Capacity (L/m) 26

Pump Speed (rpm) 950

Max Pressure (psi) 400

Working Pressure (psi) 300 - 400

Required (hp) 3 - 5

Dry weight (kg) 12

Engine

Engine

Engine Model Name GX160

Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft

Net Power kW (hp) @ rpm 3.6 (4.8) @ 3600

Cont. rated power kW (hp) @ rpm 2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600

Compression ratio 9.0 : 1

Bore X Stroke (mm) 68 x 45

Fuel Tank Capacity (L) 3.1

Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600

Ignition System Transistor Type Magneto Ignition

Engine Oil Capacity (L) 0.60

Recommended Oil Grade SAE 10W-30 API SE or higher

Engine Weight Dry (kg) 15.1

Dimensions L x W x H (mm) 312 x 362 x 346
