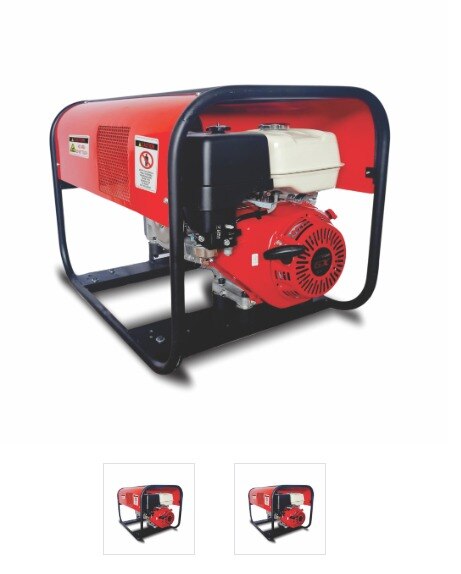

Welder EGWG220DC

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology.

SPECIFICATIONS

Welder Frame

Welder Frame

Model Name Welder EGWG220DC

Frame Type Compact

Max. AC output (kVA) @ Single Phase 4

Strike Voltage (V) 65 - 85

Voltage/ Frequency (V/Hz) 230 / 50

Alternator DC Welder

Electrode Diameter (mm) up to 5

Max. Welding Current (Amps) @ % Duty Cycle 220 at 35%

Welding Current Adjustment Range (Amps) 40 to 200

Control Panel Manual

Starting System Recoil

Dimensions L x W x H (mm) 770 x 570 x 580

Engine

Engine

Engine Model Name GX390T2 QX

Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft

Net Power kW (hp) @ rpm 8.7 (11.7) @ 3600

Cont. rated power kW (hp) @ rpm 6.4 ( 8.6 ) @ 3000, 7.0 ( 9.4 ) @ 3600

Maximum Net Torque (N•m @ rpm) 26.4 @ 2500

Compression ratio 8.2 : 1

Displacement (cc) 389

Bore X Stroke (mm) 88 x 64

Fuel Tank Capacity (L) 6.10

Fuel cons. at cont. rated power (L/h @ rpm) 3.1 L/h @ 3600

Ignition System Digital CDI with variable ignition timing

Engine Oil Capacity (L) 1.1

Oil Alert Available

Recommended Oil Grade SAE 10W-30 API SE or higher

Starting System Recoil

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 31.7

Dimensions L x W x H (mm) 406 x 460 x 448
