general purpose engines

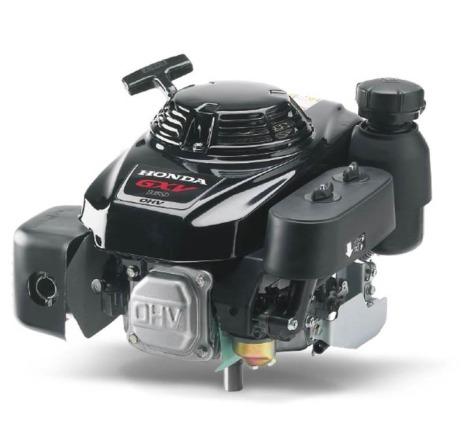

The power rating of this engine is the net power tested on a production engine for this engine model and measured in accordance with SAE J1349 at a specified rpm. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 3.2 ( 4.3 ) / 3600 Cont. rated power kW (hp) @ rpm 2.0 ( 2.7 ) / 3000 Compression ratio 8.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Tank Capacity (L) 1.8 Fuel cons. at cont. rated power (L/h @ rpm) 1.1 L/h @ 3000 Ignition System Transistorised Engine Oil Capacity (L) 0.65 Litre Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 15.5 Dimensions L x W x H (mm) 420 x 365 x 357

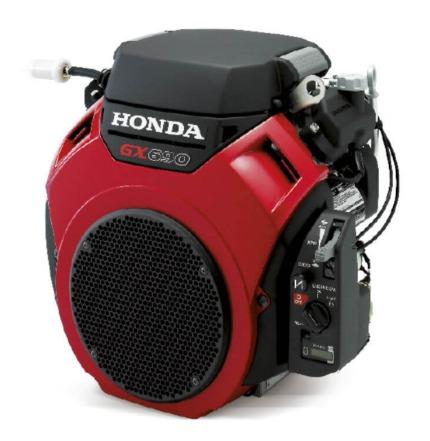

The Honda GX690 is a high-performance 4-stroke OHV petrol engine engineered to deliver exceptional power and reliability. With a 16.5 kW (22.1 hp) net power @ 3600 rpm, this engine is designed to handle the most demanding industrial, construction, and agricultural applications with ease. Its 90° V-twin design and horizontal shaft provide superior torque, smooth operation, and extended durability, making it a top choice for heavy-duty machinery. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 16.5 kW ( 22.1 HP ) / 3600 rpm Cont. rated power kW (hp) @ rpm 11.5 kW ( 15.4 HP ) / 3000 rpm, 13.0 kW ( 17.4 HP ) / 3600 rpm Compression ratio 9.3 : 1 Bore X Stroke (mm) 2 / 78 x 72 mm Fuel cons. at cont. rated power (L/h @ rpm) 6.7 L/h - 3600 rpm Ignition System Digital CDI with variable ignition timing Lubrication System Full-pressure Engine Oil Capacity (L) 1.9 Liter Carburettor 2-barrel, fuel cut solenoid Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 44.6 kg Dimensions L x W x H (mm) 429 x 410 x 438 mm Key Features High Power Output The GX690 delivers 16.5 kW (22.1 hp ) @ 3600 rpm, ensuring powerful and consistent performance even under heavy loads. Advanced 90° V-Twin Design The 90° V-twin configuration ensures smoother operation with enhanced balance and reduced vibration, making it ideal for extended usage. Durable Cast Iron Sleeve Built with a cast iron sleeve, the GX690 offers superior wear resistance, contributing to the engine's long lifespan, even in harsh working conditions. OHV (Overhead Valve) Technology The OHV design enhances combustion efficiency, improves fuel economy, and reduces emissions, making the engine both powerful and environmentally friendly. Air-Cooled System The air-cooled 4-stroke engine is designed for efficient heat dissipation, ensuring the engine performs optimally even during prolonged periods of operation. Reliable and Easy Start The GX690 is equipped with an automatic decompression system for easy starting, and its high-quality components ensure long-term, reliable operation. Low Fuel Consumption With an emphasis on fuel efficiency, the GX690 minimizes operational costs, making it suitable for large-scale and long-term applications. Reduced Noise and Vibration ​​​​​​​Designed to minimize noise and vibration, the engine provides a more comfortable operating experience, especially for extended use in industrial settings. Applications of the Honda GX690 1. Ride-On Power Trowels The Honda GX690 is the go-to engine for ride-on power trowels, which are widely used in large concrete flooring projects. The high power output allows for smooth, efficient operation, ensuring that concrete surfaces are finished to a high standard. The V-twin design ensures better balance and stability, providing operators with precision control even over large areas. The engine’s fuel efficiency ensures prolonged operation without frequent refueling, making it perfect for large construction sites where time and efficiency are crucial. Why Choose the Honda GX690? The Honda GX690 is built to offer maximum power, efficiency, and reliability for users in construction, agriculture, and other industries. Whether powering a ride-on power trowel for large-scale concrete projects or driving a mini tractor in tough agricultural conditions, the GX690 delivers superior performance with reduced fuel consumption and emissions. Its advanced V-twin design, combined with OHV technology, ensures that the engine runs smoothly, even under the most challenging conditions. The cast iron sleeve adds an extra layer of durability, making this engine a long-term investment for businesses looking to enhance their productivity. For those seeking a high-performance engine that combines power, efficiency, and durability, the Honda GX690 is the perfect choice. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

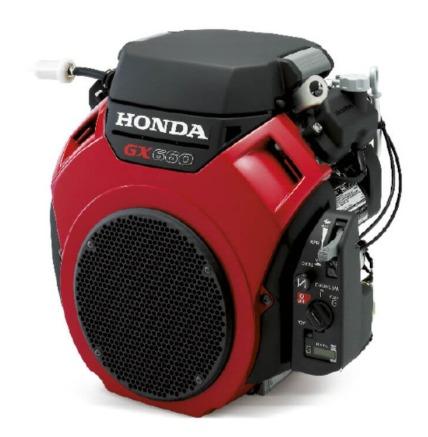

The Honda GX660 is a high-performance 4-stroke OHV petrol engine engineered to deliver exceptional power and reliability. With a 16.0 kW (21.5 hp) net power @ 3600 rpm, this engine is designed to handle the most demanding industrial, construction, and agricultural applications with ease. Its 90° V-twin design and horizontal shaft provide superior torque, smooth operation, and extended durability, making it a top choice for heavy-duty machinery. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 16.0 ( 21.5 ) / 3600 Cont. rated power kW (hp) @ rpm 11.0 ( 14.8 ) / 3000 , 12.5 ( 16.8 ) / 3600 Compression ratio 9.3 : 1 Displacement (cc) 688 Bore X Stroke (mm) 2 / 78 x 72 Fuel cons. at cont. rated power (L/h @ rpm) 6.3 L/h @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.9 Starting System Electric Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 44.6 Dimensions L x W x H (mm) 429 x 410 x 438 Key Features High Power Output The GX690 delivers 16.0 kW (21.5 hp) at 3600 rpm, ensuring powerful and consistent performance even under heavy loads. Advanced 90° V-Twin Design The 90° V-twin configuration ensures smoother operation with enhanced balance and reduced vibration, making it ideal for extended usage. Durable Cast Iron Sleeve Built with a cast iron sleeve, the GX660 offers superior wear resistance, contributing to the engine's long lifespan, even in harsh working conditions. OHV (Overhead Valve) Technology The OHV design enhances combustion efficiency, improves fuel economy, and reduces emissions, making the engine both powerful and environmentally friendly. Air-Cooled System The air-cooled 4-stroke engine is designed for efficient heat dissipation, ensuring the engine performs optimally even during prolonged periods of operation. Reliable and Easy Start The GX660 is equipped with an automatic decompression system for easy starting, and its high-quality components ensure long-term, reliable operation. Low Fuel Consumption ​​​​​​​With an emphasis on fuel efficiency, the GX660 minimizes operational costs, making it suitable for large-scale and long-term applications. Reduced Noise and Vibration ​​​​​​​Designed to minimize noise and vibration, the engine provides a more comfortable operating experience, especially for extended use in industrial settings. Applications of the Honda GX660 1. Ride-On Power Trowels The Honda GX660 is the go-to engine for ride-on power trowels, which are widely used in large concrete flooring projects. The high power output allows for smooth, efficient operation, ensuring that concrete surfaces are finished to a high standard. The V-twin design ensures better balance and stability, providing operators with precision control even over large areas. The engine’s fuel efficiency ensures prolonged operation without frequent refueling, making it perfect for large construction sites where time and efficiency are crucial. Why Choose the Honda GX660? The Honda GX690 is built to offer maximum power, efficiency, and reliability for users in construction, agriculture, and other industries. Whether powering a ride-on power trowel for large-scale concrete projects or driving a mini tractor in tough agricultural conditions, the GX690 delivers superior performance with reduced fuel consumption and emissions. Its advanced V-twin design, combined with OHV technology, ensures that the engine runs smoothly, even under the most challenging conditions. The cast iron sleeve adds an extra layer of durability, making this engine a long-term investment for businesses looking to enhance their productivity. For those seeking a high-performance engine that combines power, efficiency, and durability, the Honda GX660 is the perfect choice. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

The Honda GX630 is a high-performance 4-stroke OHV petrol engine engineered to deliver exceptional power and reliability. With a 15.5 kW (20.8 hp) net power @ 3600 rpm, this engine is designed to handle the most demanding industrial, construction, and agricultural applications with ease. Its 90° V-twin design and horizontal shaft provide superior torque, smooth operation, and extended durability, making it a top choice for heavy-duty machinery. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 15.5 kW ( 20.8 HP ) / 3600 rpm Cont. rated power kW (hp) @ rpm 10.5 kW ( 14.1 HP ) / 3000 rpm, 12.0 kW ( 16.1 HP ) / 3600 rpm Compression ratio 9.3 : 1 Bore X Stroke (mm) 2 / 78 x 72 mm Fuel cons. at cont. rated power (L/h @ rpm) 6.0 L/h - 3600 rpm Ignition System Digital CDI with variable ignition timing Lubrication System Full-pressure Engine Oil Capacity (L) 1.9 Liter Carburettor 2-barrel, fuel cut solenoid Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 44.4 kg Dimensions L x W x H (mm) 405 x 410 x 438 mm Key Features High Power Output The GX630 delivers 15.5 kW (20.8 hp) @ 3600 rpm, ensuring powerful and consistent performance even under heavy loads. Advanced 90° V-Twin Design The 90° V-twin configuration ensures smoother operation with enhanced balance and reduced vibration, making it ideal for extended usage. Durable Cast Iron Sleeve Built with a cast iron sleeve, the GX630 offers superior wear resistance, contributing to the engine's long lifespan, even in harsh working conditions. OHV (Overhead Valve) Technology The OHV design enhances combustion efficiency, improves fuel economy, and reduces emissions, making the engine both powerful and environmentally friendly. Air-Cooled System The air-cooled 4-stroke engine is designed for efficient heat dissipation, ensuring the engine performs optimally even during prolonged periods of operation. Reliable and Easy Start The GX690 is equipped with an automatic decompression system for easy starting, and its high-quality components ensure long-term, reliable operation. Low Fuel Consumption With an emphasis on fuel efficiency, the GX630 minimizes operational costs, making it suitable for large-scale and long-term applications. Reduced Noise and Vibration Designed to minimize noise and vibration, the engine provides a more comfortable operating experience, especially for extended use in industrial settings. Applications of the Honda GX630 1. Ride-On Power Trowels The Honda GX630 is the go-to engine for ride-on power trowels, which are widely used in large concrete flooring projects. The high power output allows for smooth, efficient operation, ensuring that concrete surfaces are finished to a high standard. The V-twin design ensures better balance and stability, providing operators with precision control even over large areas. The engine’s fuel efficiency ensures prolonged operation without frequent refueling, making it perfect for large construction sites where time and efficiency are crucial. Why Choose the Honda GX630? The Honda GX630 is built to offer maximum power, efficiency, and reliability for users in construction, agriculture, and other industries. Whether powering a ride-on power trowel for large-scale concrete projects or driving a mini tractor in tough agricultural conditions, the GX630 delivers superior performance with reduced fuel consumption and emissions. Its advanced V-twin design, combined with OHV technology, ensures that the engine runs smoothly, even under the most challenging conditions. The cast iron sleeve adds an extra layer of durability, making this engine a long-term investment for businesses looking to enhance their productivity. For those seeking a high-performance engine that combines power, efficiency, and durability, the Honda GX630 is the perfect choice. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

The Honda GX430 is a compact, air-cooled 4-stroke OHV engine with a 425 cm³ displacement, delivering up to 9.6 kW at 3,600 rpm. It combines advanced fuel-efficient combustion, a compression-release mechanism for effortless starting, and shaft-balancing technology to minimize vibration and noise. An precision governor ensures stable RPM under load, making the GX430 ideal for a wide range of industrial and commercial applications. DESCRIPTION The Honda GX430 is a rugged, air-cooled 4-stroke OHV engine with a 425 cm³ displacement (88 × 70 mm) that packs 9.6 kW and 28.5 Nm of torque at 3,600 rpm into a 32 kg package (387 × 469 × 453 mm). It burns just 4.5 L/h of E10 fuel under load, thanks to advanced combustion technology, and its 6.1 L tank and 1.1 L oil capacity ensure long run times between service. A compression-release mechanism delivers effortless recoil starts, while Honda’s shaft-balancing system and dual/low-profile air cleaner minimize vibration, noise, and dust ingestion for durable, quiet operation. The CDI-type magneto ignition and recoil/electric starter options guarantee reliable firing, and an advanced governor holds engine speed steady under fluctuating loads—making the GX430 an ideal power source for generators, pumps, compressors, construction gear and agricultural machinery. SPECIFICATIONS Engine Engine Compression ratio 9.0 Bore X Stroke (mm) 88.0x70.0 Fuel Type E10 Fuel Tank Capacity (L) 6.1 Ignition System CDI type magneto Engine Oil Capacity (L) 1.1 Starting System Recoil/Starter motor Dimensions L x W x H (mm) 387x469x453 Why Choose the Honda GX430? The Honda GX430 is engineered for users who demand a powerful and reliable engine for various applications. Its advanced OHV design, high power output, and durability make it an excellent choice for agricultural machinery, recreational equipment, and industrial tools. Whether you need a dependable engine for nut cutters, go-karts, or concrete cutters, the GX430 provides superior performance and efficiency, ensuring optimal results and long-term satisfaction. Engine Warranty Terms & Conditions 1. Warranty Period Two year from the date of purchase for Non-Commercial use by customer. Two year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

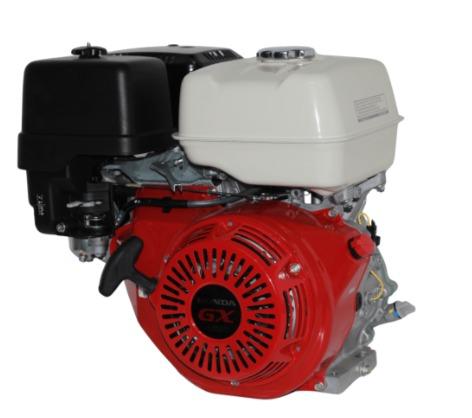

The Honda GX390 is a robust and powerful 4-stroke OHV petrol engine designed for heavy-duty applications where reliability and performance are key. With an impressive 8.7 kW (10.7 hp) net power @ 3600 rpm, this engine is the perfect choice for industrial, construction, and agricultural applications that demand high power and efficiency. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 8.7 kW ( 11.7 HP ) / 3600 rpm Cont. rated power kW (hp) @ rpm 6.4 kW ( 8.6 HP ) / 3000 rpm, 7.0 kW ( 9.4 HP ) / 3600 rpm Compression ratio 8.2 : 1 Bore X Stroke (mm) 88 x 64 mm Fuel Tank Capacity (L) 6.1 Liter Fuel cons. at cont. rated power (L/h @ rpm) 3.5 L/h - 3600 rpm Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Liter Starting System Recoil (el. start optional) Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 31.7 kg Dimensions L x W x H (mm) 406 x 460 x 448 mm Key Features Powerful Performance The GX390 offers 8.7 kW (10.7 hp) net power @ 3600 rpm, providing the strength needed for intensive operations. OHV Design for Enhanced Efficiency The Overhead Valve (OHV) design improves combustion efficiency and ensures a high power-to-displacement ratio, delivering more power with reduced emissions. Easy Starting Mechanism Equipped with an automatic decompression system and an ergonomic soft recoil starter handle, the GX390 offers smooth and reliable starting, even in tough conditions. Durable and Long-Lasting Manufactured with high-quality materials and components designed for long-term use, the GX390 ensures superior durability in the most demanding environments. Environmentally Friendly The GX390 meets world-class environmental standards, offering low emissions and ensuring compliance with the strictest regulations. Efficient Fuel and Oil Consumption The engine’s low fuel and oil consumption reduces operating costs, making it a cost-effective solution for a wide range of applications. Reduced Vibration and Noise Engineered to minimize vibration and noise levels, it provides a more comfortable and quiet operation for the user, ideal for extended work periods. Applications of the Honda GX390 Concrete Cutter The Honda GX390 is extensively used in concrete cutting machines, which are essential for construction projects. With its high power output and robust design, the GX390 can handle the demanding tasks of cutting through thick concrete and hard surfaces with precision and ease. The OHV design enhances fuel efficiency, allowing for longer operation without the need for frequent refueling, making it ideal for large-scale projects. Its easy-start system ensures reliable performance, even after extended use, and its reduced vibration enhances control and accuracy while cutting, leading to smoother and more precise results. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

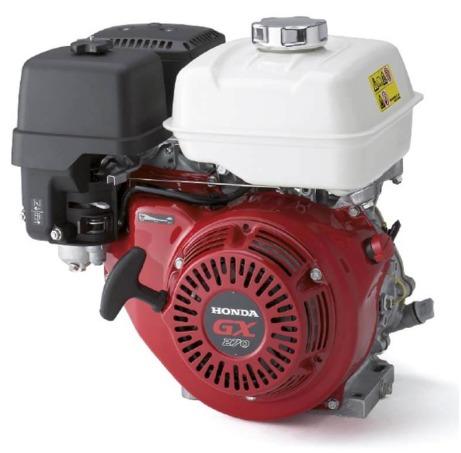

The Honda GX270 is a reliable, powerful 4-stroke OHV petrol engine built for performance and efficiency. Delivering an impressive 6.3 kW (8.4 hp) net power @ 3600 rpm, this engine is designed to excel in demanding applications, providing a perfect blend of power, durability, and fuel efficiency. SPECIFICATIONS Engine Engine Net Power kW (hp) @ rpm 6.3 kW ( 8.4 HP ) / 3600 rpm Cont. rated power kW (hp) @ rpm 4.6 kW ( 6.2 HP ) / 3000 rpm, 5.1 kW ( 6.8 HP ) / 3600 rpm Compression ratio 8.5 : 1 Bore X Stroke (mm) 77 x 58 mm Fuel Tank Capacity (L) 5.3 Litre Fuel cons. at cont. rated power (L/h @ rpm) 2.4 L/h - 3600 rpm Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Litre Starting System Recoil (el. start optional) Cylinder sleeve type Cast iron sleeve Engine Dry Weight (kg) 25.8 kg Dimensions L x W x H (mm) 381 x 428 x 422 mm Key Features Powerful Output The GX270 offers 6.3 kW (8.4 HP) net power @ 3600 rpm, providing superior strength for heavy-duty operations. OHV Design for Better Efficiency The Overhead Valve (OHV) design ensures enhanced combustion efficiency and a high power-to-displacement ratio, offering better performance while reducing emissions. Reliable Starting Equipped with an automatic decompression system and a comfortable soft recoil starter handle, the engine starts easily even in challenging conditions. Built for Durability Crafted with high-quality materials and purpose-built components, the GX270 is designed to ensure long-term reliability in rigorous environments. Environmental Compliance ​​​​​​​Meets the world’s strictest environmental regulations, ensuring eco-friendly operation with lower emissions. Fuel-Efficient Operation ​​​​​​​The GX270’s low fuel and oil consumption helps reduce operational costs, making it a cost-effective choice. Reduced Vibration and Noise ​​​​​​​Engineered to minimize vibration and noise, providing a quieter and smoother experience, which is essential for user comfort during extended use. Applications of the Honda GX270 1. Long-Tailed Outboard Boats The Honda GX270 is widely used in long-tailed outboard boats, particularly in regions where boats must navigate through harsh waters and tough environments. The engine’s high power output combined with its fuel efficiency ensures faster speeds, reduced fuel consumption, and the reliability needed for prolonged use. Whether used for fishing boats, water taxis, or seafood transport, the GX270 delivers a stable performance even in demanding marine conditions. The engine's easy-starting mechanism and low noise levels also make it ideal for professional and recreational boat operators who need consistent power and dependability. 2. Agricultural Weeders For agricultural use, the GX270 powers weeders that help farmers maintain their fields efficiently. Its robust power output is well-suited for tillage and weeding applications, allowing users to clear large areas quickly and effectively. The engine’s low fuel consumption ensures prolonged operation in the field without frequent refueling, while the OHV design enhances fuel efficiency, making it a go-to choice for agricultural machinery. In addition, the reduced vibration and noise levels improve the operator's experience, allowing for more comfortable and extended working hours in the field. Why Choose the Honda GX270? The Honda GX270 is designed for users who require heavy-duty performance with a focus on reliability and efficiency. Its advanced OHV design, high power output, and ease of use make it a versatile choice for marine and agricultural applications, including long-tailed outboard boats and weeders. With low emissions, cost-effective operation, and the ability to perform under harsh conditions, the GX270 stands out as the preferred engine for those who need power without compromising on durability or environmental impact. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

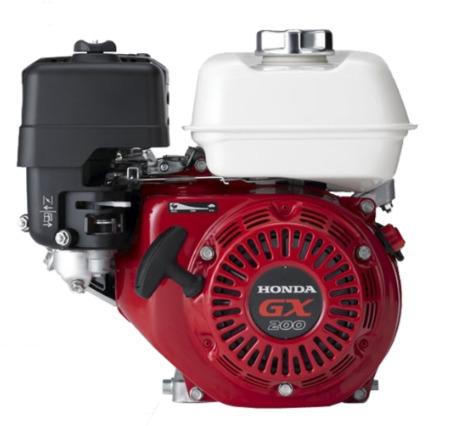

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance. SPECIFICATIONS Engine Engine Engine Model Name GX200 Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft Net Power kW (hp) @ rpm 4.1 (5.5) @ 3600 Maximum Net Torque (N•m @ rpm) 12.4 @ 2500 Compression ratio 8.5 : 1 Displacement (cc) 196 Bore X Stroke (mm) 68 x 54 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Ignition System Transistor Type Magneto Ignition Lubrication System Splash Engine Oil Capacity (L) 0.6 Oil Alert Optional Recommended Oil Grade SAE 10W30 Starting System Recoil Starter Carburettor Horizontal Type, Butterfly Valve Air Cleaner Dual Type, Oil Bath Type Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 16.1 Engine Operating Weight (kg) 19.6 Dimensions L x W x H (mm) 313X376X335

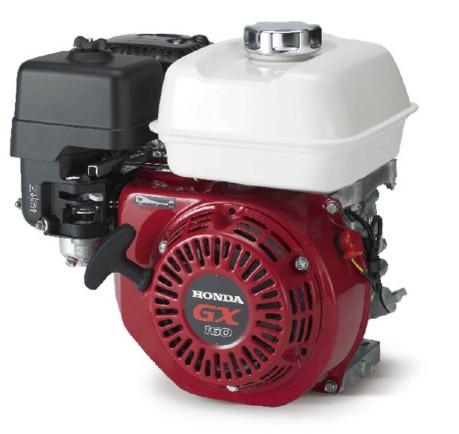

The Honda GX160 is a high-performance 4-stroke OHV petrol engine designed to deliver exceptional power and reliability across various demanding applications. With a robust 3.6 kW (4.8 HP) net power at 3600 RPM, this engine is engineered for both durability and efficiency, making it ideal for use in environments that require consistent performance and high load capabilities. SPECIFICATIONS Engine Engine Engine Model Name GX160 Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft Net Power kW (hp) @ rpm 3.6 ( 4.8 ) @ 3600 Maximum Net Torque (N•m @ rpm) 10.3 @2500 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Ignition System Transistorised type magneto ingnition system Lubrication System Splash Engine Oil Capacity (L) 0.58 Oil Alert Optional Recommended Oil Grade SAE 10W30 Starting System Recoil Starter Carburettor Horizontal Type, Butterfly Valve Air Cleaner Dual Type, Oil Bath Type Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 15.1 Engine Operating Weight (kg) 18.6 Dimensions L x W x H (mm) 312 x 362 x 346 Key Features Powerful and Efficient The GX160 boasts a 3.6 kW (4.8 HP) net power output at 3600 RPM, providing robust performance for a range of applications. Advanced OHV Design The Overhead Valve (OHV) design enhances combustion efficiency, offering a high power-to-displacement ratio while maintaining a compact size. Easy Starting Equipped with an automatic decompression system and an easy-to-grip soft recoil starter handle, the GX160 ensures quick and reliable starts with minimal effort. Durable Construction Built with high-quality materials and purpose-built components, the GX160 guarantees long-term reliability and resistance to wear and tear. Environmental Compliance ​​​​​​​The engine meets the world’s most stringent environmental regulations, ensuring it operates cleanly and efficiently. Low Fuel and Oil Consumption ​​​​​​​Its compact combustion chamber and high thermal efficiency contribute to reduced fuel and oil consumption, making it cost-effective to operate. Reduced Vibration and Noise ​​​​​​​Designed to minimize vibration and noise, the GX160 provides a smoother and quieter operating experience. Applications of the Honda GX160 Marine Applications: Long-Tail Boats The GX160’s 1/2 reduction mechanism is specifically developed for long-tail boats operating in harsh marine environments. This design ensures Faster Boat Speeds ​​​​​​​The engine’s high power output enables quicker acceleration and higher speeds, essential for efficient navigation and fishing activities. Improved Fuel Economy ​​​​​​​Its fuel-efficient design reduces operational costs, making it ideal for long-distance trips and extended use. Reliability in Harsh Conditions ​​​​​​​The GX160 maintains high performance even in challenging conditions, such as shallow waters and rough seas. Sub-Applications: Mid-Range Fishing Boats: Provides reliable power for fishing activities, ensuring smooth operation and effective handling. Seafood Transport Boats: Delivers consistent power for transporting fish and seafood, even over long distances. Taxi Boats: Ensures dependable performance for passenger transport in areas where boat taxis are commonly used. 2. Agricultural Equipment The GX160 is well-suited for various agricultural machinery, offering dependable power for: Nutt Cutters ​​​​​​​Powers equipment used for harvesting nuts, providing consistent performance in agricultural settings. Reapers ​​​​​​​Operates reaping machines efficiently, assisting in the cutting and gathering of crops. 3. Construction and Industrial Equipment With its robust design and high output, the GX160 excels in construction and industrial applications, such as: Go-Karts ​​​​​​​Provides reliable power for go-kart engines, ensuring a fun and exhilarating driving experience. Concrete Cutters ​​​​​​​Powers equipment for cutting concrete, making it easier to perform precise cuts and achieve high-quality results. Power Trowels ​​​​​​​Drives trowels used for finishing concrete surfaces, ensuring smooth and professional results. Why Choose the Honda GX160? The Honda GX160 is designed for users who require a reliable, high-performance engine for a variety of demanding applications. Its advanced OHV design, durable construction, and fuel-efficient operation make it an excellent choice for both marine and industrial use. Whether powering long-tail boats, agricultural equipment, or construction machinery, the GX160 delivers consistent performance and reliability, even under the most challenging conditions. Engine Warranty Terms & Conditions 1. Warranty Period Two year from the date of purchase for Non-Commercial use by customer. Two year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

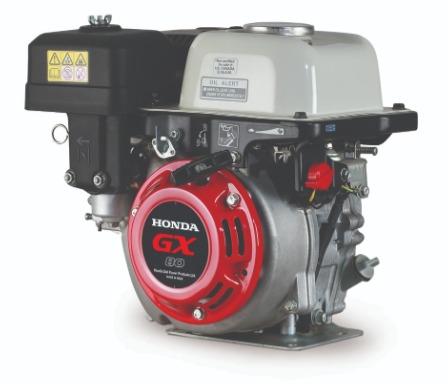

The Honda GX80 is designed for versatility and efficiency, offering 1.5 kW (2 hp) at 3600 rpm. Its advanced Overhead Valve(OHV) design is powered by a maintenance-free, low-noise, making the engine lightweight, compact, and perfect for various high-performance applications such as sugarcane juice machines, long-tailed outboard boats, concrete vibrator, and HTP Sprayer. SPECIFICATIONS Engine Engine Engine Model Name GX80 Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft Net Power kW (hp) @ rpm 1.5 ( 2.0) @ 3600 Maximum Net Torque (N•m @ rpm) 4.5 @2500 Compression ratio 9 : 1 Displacement (cc) 79.7 Bore X Stroke (mm) 46 x 48 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 1.5 Ignition System Transistor Type Magneto Ignition Lubrication System Splash Engine Oil Capacity (L) 0.36 Recommended Oil Grade SAE 10W30 Starting System Recoil Starter Carburettor Horizontal Type, Butterfly Valve Air Cleaner Dual Type Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 11.1 Engine Operating Weight (kg) 12.5 Dimensions L x W x H (mm) 275 x 342 x 323 Key Features OHV Design OHV Design with Low-Noise: The GX80 features an Overhead Valve (OHV) layout, driven by a maintenance-free, low-noise. This design reduces overall engine size and weight while ensuring smooth, quiet operation, making it ideal for environments where noise control is important. Durability & Reliability The cast iron cylinder sleeve and high carbon steel, dual ball-bearing crankshaft ensure long-lasting durability and superior reliability, even in demanding conditions. Low Noise Levels The large-capacity muffler, combined with the unique OHV layout, reduces noise for better user experience and reduced sound pollution. Fuel Efficiency & Low Emissions A compact combustion chamber with high thermal efficiency minimizes fuel consumption and ensures compliance with the world's strictest environmental standards. Applications of Honda GX80 Engine Sugarcane Juice Machines: The Honda GX80 provides smooth and reliable power, making it the perfect engine for sugarcane juice machines. Its compact design and low-noise operation ensure that juice vendors and small business owners can offer a seamless experience to customers, even in busy markets. The engine's fuel efficiency keeps operational costs low while maintaining consistent power output, enabling longer operating hours without interruptions. Long-Tailed Outboard Boats: In the world of water transport, the GX80 is an excellent choice for powering long-tailed outboard boats. Its high durability make it suitable for navigating various water conditions. The engine's smooth acceleration ensures efficient maneuverability, while its lightweight build helps to enhance the boat's speed and responsiveness. The low fuel consumption ensures that long voyages can be completed with fewer refueling stops, a critical advantage for both fishing and transportation activities. Engine Warranty Terms & Conditions 1. Warranty Period Two year from the date of purchase for Non-Commercial use by customer. Two year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

The Honda GX50 is a high-performance 4-stroke engine, delivering 1.47 kW (2.0 hp) at 7000 rpm. Known for its world-first 360° inclinable operation, it ensures optimal performance in any position, making it an ideal choice for Brush Cutters, Agriculture Sprayer. SPECIFICATIONS Engine Engine Engine Model Name GX50 Engine Type 4-Stroke, Overhead Cam Single Cylinder, Vertical type 360° rotatable Net Power kW (hp) @ rpm 1.47 (2.0 hp) @ 7000 Maximum Net Torque (N•m @ rpm) 2.2. @ 5000 Compression ratio 8.0 : 1 Displacement (cc) 47.9 Bore X Stroke (mm) 43 X 33 Fuel Type Unleaded Gasoline Fuel Tank Capacity (L) 0.63 Ignition System Transistor Type Magneto Ignition Lubrication System Oil Mist Engine Oil Capacity (L) 0.13 Recommended Oil Grade SAE 10W30 Starting System Recoil Starter Carburettor Diaphragm Type Air Cleaner Paper Filter Engine Dry Weight (kg) 4.13 Dimensions L x W x H (mm) 199 X 260 X 263 Key Features 360° Inclinable Operation This innovative design allows the engine to function flawlessly at any angle, ensuring versatility across diverse uses. OHC Design with Low-Noise Timing Belt Powered by an overhead cam (OHC) system, the engine is more compact, lightweight, and durable. The maintenance-free, low-noise timing belt enhances its reliability while keeping operational noise to a minimum. Easy Start and Superb Acceleration With Honda's advanced technology, the GX50 ensures effortless starting and swift acceleration, providing smooth performance under any condition. Low Fuel and Oil Consumption Built for sustainability, this engine is incredibly fuel-efficient, with minimal oil consumption, contributing to lower operating costs. High-Quality, Long-Term Durability Crafted from premium materials and purpose-built components, the GX50 is designed for reliable, long-term use even in the most demanding conditions. Eco-Friendly Compliance The GX50 adheres to the world’s most stringent environmental regulations, ensuring a cleaner, greener performance without compromising on power. Applications The Honda GX50 is specially suited for: Brush Cutters deal for trimming and de-weeding in gardens, landscapes, and farms. Agricultural Sprayers Ensures reliable operation for spraying fertilizers, pesticides, and other treatments across fields. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).

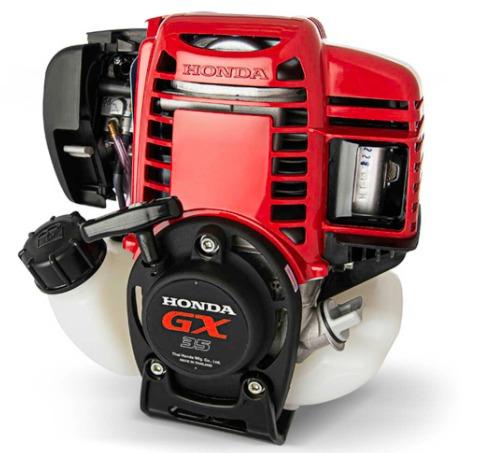

The Honda GX35 is a high-performance 4-stroke engine, delivering 1.0 kW (1.3 hp) at 7000 rpm. Known for its world-first 360° inclinable operation, it ensures optimal performance in any position, making it an ideal choice for Brush Cutters, Agriculture Sprayer. SPECIFICATIONS Engine Engine Engine Model Name GX35 Engine Type 4-Stroke, Overhead Cam Single Cylinder, Vertical type 360° rotatable Net Power kW (hp) @ rpm 1.2 (1.6) @ 7000 Maximum Net Torque (N•m @ rpm) 1.9 @ 5500 Compression ratio 8.0 : 1 Displacement (cc) 35.8 Bore X Stroke (mm) 39 x 30 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 0.63 Ignition System Transistor Type Magneto Ignition Lubrication System Oil Mist Engine Oil Capacity (L) 0.1 Recommended Oil Grade SAE 10W30 Starting System Recoil Starter Carburettor Diaphragm Type Air Cleaner Paper Filter Engine Dry Weight (kg) 3.46 Engine Operating Weight (kg) 4.01 Dimensions L x W x H (mm) 198 x 234 x 240 Key Features 360° Inclinable Operation This innovative design allows the engine to function flawlessly at any angle, ensuring versatility across diverse uses. OHC Design with Low-Noise Timing Belt Powered by an overhead cam (OHC) system, the engine is more compact, lightweight, and durable. The maintenance-free, low-noise timing belt enhances its reliability while keeping operational noise to a minimum. Easy Start and Superb Acceleration With Honda's advanced technology, the GX35 ensures effortless starting and swift acceleration, providing smooth performance under any condition. Low Fuel and Oil Consumption Built for sustainability, this engine is incredibly fuel-efficient, with minimal oil consumption, contributing to lower operating costs. High-Quality, Long-Term Durability Crafted from premium materials and purpose-built components, the GX35 is designed for reliable, long-term use even in the most demanding conditions. Eco-Friendly Compliance The GX35 adheres to the world’s most stringent environmental regulations, ensuring a cleaner, greener performance without compromising on power. Applications The Honda GX35 is specially suited for: Brush Cutters deal for trimming and de-weeding in gardens, landscapes, and farms. Agricultural Sprayers Ensures reliable operation for spraying fertilizers, pesticides, and other treatments across fields. Engine Warranty Terms & Conditions 1. Warranty Period One year from the date of purchase for Non-Commercial use by customer. One year from the date of purchase for Commercial/ Rental use by customer. 2. Warranty Obligation Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship. 3. Warranty Service To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense. 4. Terms and Condition To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative. Presentation of this warranty & free service coupon booklet. Warranty does not include: Normal / natural wear & tear and normal deterioration of paint or other appearances. Failures resulting from unauthorised modifications or repairs. Failures resulting due to not availing of free service within the stipulated time Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol. Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation. Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel. Normal phenomena such as noise and vibrations. Incidental or consequential damage like inconvenience or commercial loss. Any part or labour incurred in normal maintenance services. Failures resulting from usage of non-genuine spare part (s).
