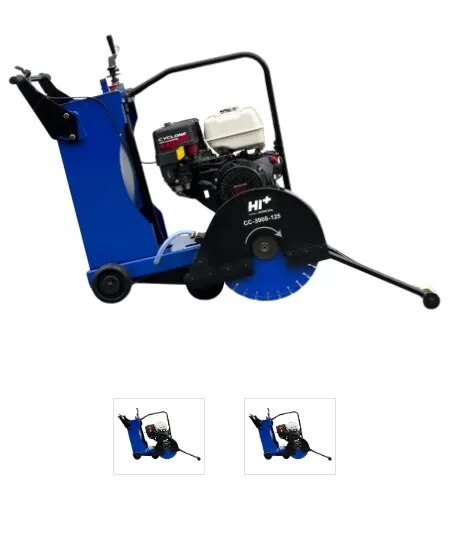

Concrete Cutter CC-390S-125

Engineered for Precision. Built to Last. Introducing the all-new HI+ Concrete Cutter, powered by the heavy-duty Honda GX390 professional-grade engine delivering a robust 8.6 kW of power. Designed for performance and durability, this machine features a reinforced frame, a high-strength cutting blade with a precision cutting depth of up to 125 mm, and a large water tank for smooth, dust-free operation. With an adjustable handle for effortless depth control, the HI+ Concrete Cutter ensures accuracy, efficiency, and long-lasting reliability — making it the perfect partner for tough construction jobs.

SPECIFICATIONS

Concrete Cutter Frame

Concrete Cutter Frame

Model Name CC-390S-125

Drive System Belt

Blade Diameter (mm) 406

Max. Cutting Depth (mm) 125±5

Water Tank Metal

Water Tank Capacity (L) 30

Dry Weight (kg) 140

Country of Origin India

Engine

Engine

Engine Model Name GX390T2 QX

Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft

Net Power kW (hp) @ rpm 8.7 (11.7) @ 3600

Cont. rated power kW (hp) @ rpm 9.5 (13) @ 3600

Maximum Net Torque (N•m @ rpm) 26.4 @ 2500

Compression ratio 8.2 : 1

Displacement (cc) 389

Bore X Stroke (mm) 88 x 64

Fuel cons. at cont. rated power (L/h @ rpm) 3.1 @ 3600

Ignition System Digital CDI with variable ignition timing

Engine Oil Capacity (L) 1.1

Recommended Oil Grade SAE 10W-30 API SE or higher

Cylinder sleeve type Cast Iron Sleeve
