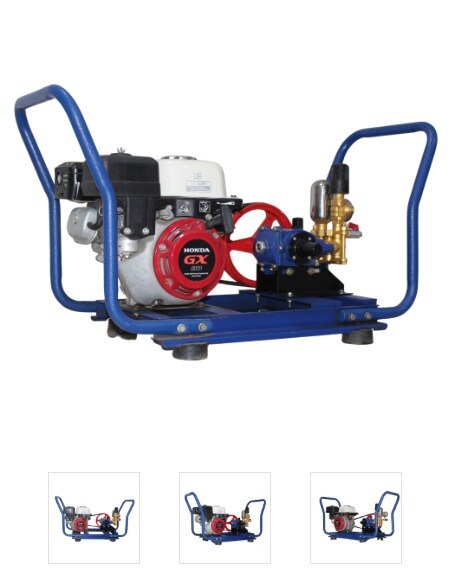

HTP Sprayer HTP80F

A high-performance sprayer designed with a strong and sturdy frame, the HTP Sprayer 80F is lightweight, compact, and easy to carry. It features a high-pressure output, adjustable spray gun, and is ideal for agricultural and horticultural spraying applications.

HTP Sprayer Frame

HTP Sprayer Frame

Model Name HTP80F

Sprayer Model AS-16

No. of Plungers 3

Suction Capacity (L/m) 16

Pump Speed (rpm) 950

Max Pressure (psi) 400

Working Pressure (psi) 200 - 300

Required (hp) 1.5

Dry weight (kg) 10

Engine

Engine

Engine Model Name GX80D

Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft

Net Power kW (hp) @ rpm 1.5 (2.0) @ 3600

Cont. rated power kW (hp) @ rpm 1.0 ( 1.3 ) @ 3000, 1.2 ( 1.6 ) @ 3600

Compression ratio 9.0 : 1

Displacement (cc) 79.7

Bore X Stroke (mm) 46 x 48

Fuel Tank Capacity (L) 1.5

Fuel cons. at cont. rated power (L/h @ rpm) 0.6 @ 3600

Ignition System Transistor Type Magneto Ignition

Engine Oil Capacity (L) 0.36

Recommended Oil Grade SAE 10W-30 API SE or higher

Engine Weight Dry (kg) 11.1

Dimensions L x W x H (mm) 275 x 342 x 323
