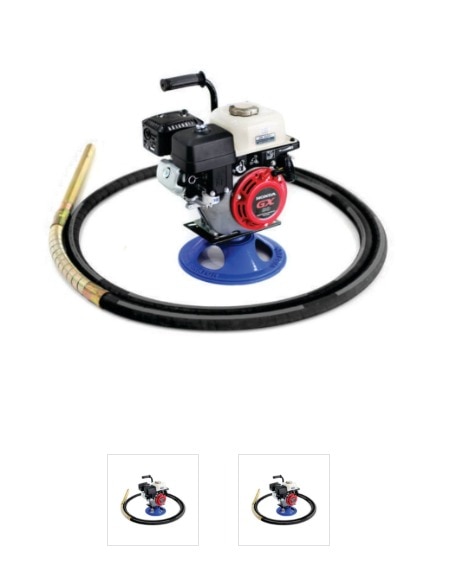

CV40-80 Concrete Vibrator with GX80

Enhance the quality and durability of your concrete structure with our high-performance Concrete Vibrator. Designed for professional use, this tool ensures optimal consolidation by eliminating air bubbles and voids, resulting in a denser, more robust concrete structure. Its powerful Engine and ergonomic design provide efficient and comfortable operation, making it ideal for a variety of construction applications. Whether you’re working on foundations, slabs, or columns, HI+ Concrete Vibrator is your go-to solution for achieving superior concrete finishes.

SPECIFICATIONS

Vibrator Frame

Vibrator Frame

Needle Dia. (mm) 40

Flexible Shaft Length (m) 6

Base Plate Revolving (PVC)

Engine

Engine

Engine Model Name GX80

Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°

Net Power kW (hp) @ rpm 1.5 ( 2.0 ) @ 3600

Cont. rated power kW (hp) @ rpm 1.2 ( 1.6 ) @ 3600

Compression ratio 9.0:1

Bore X Stroke (mm) 46 x 48

Fuel Type Unleaded Petrol

Fuel cons. at cont. rated power (L/h @ rpm) 0.6 @ 3600

Ignition System Transistor Type Magneto Ignition

Engine Oil Capacity (L) 0.36

Recommended Oil Grade SAE 10W-30 API SE or higher

Engine Weight Dry (kg) 11.1

Dimensions L x W x H (mm) 275 x 342 x 323
