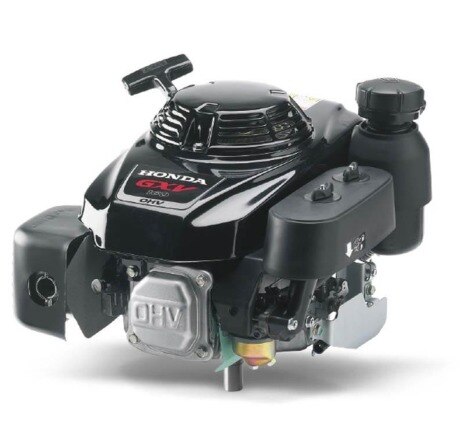

GXV160
In stock
Description
The power rating of this engine is the net power tested on a production engine for this engine model and measured in accordance with SAE J1349 at a specified rpm.
SPECIFICATIONS
Engine
Engine
Net Power kW (hp) @ rpm 3.2 ( 4.3 ) / 3600
Cont. rated power kW (hp) @ rpm 2.0 ( 2.7 ) / 3000
Compression ratio 8.0 : 1
Bore X Stroke (mm) 68 x 45
Fuel Tank Capacity (L) 1.8
Fuel cons. at cont. rated power (L/h @ rpm) 1.1 L/h @ 3000
Ignition System Transistorised
Engine Oil Capacity (L) 0.65 Litre
Cylinder sleeve type Cast iron sleeve
Engine Dry Weight (kg) 15.5
Dimensions L x W x H (mm) 420 x 365 x 357
