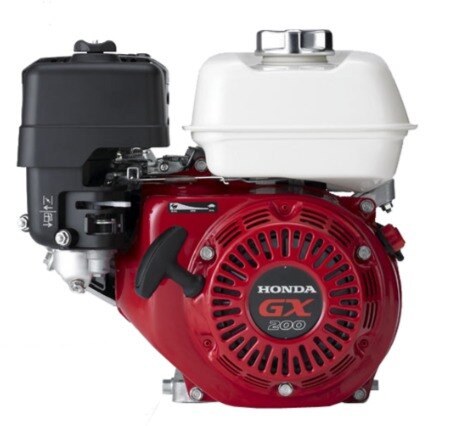

GX200

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

SPECIFICATIONS

Engine

Engine

Engine Model Name GX200

Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft

Net Power kW (hp) @ rpm 4.1 (5.5) @ 3600

Maximum Net Torque (N•m @ rpm) 12.4 @ 2500

Compression ratio 8.5 : 1

Displacement (cc) 196

Bore X Stroke (mm) 68 x 54

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 3.1

Ignition System Transistor Type Magneto Ignition

Lubrication System Splash

Engine Oil Capacity (L) 0.6

Oil Alert Optional

Recommended Oil Grade SAE 10W30

Starting System Recoil Starter

Carburettor Horizontal Type, Butterfly Valve

Air Cleaner Dual Type, Oil Bath Type

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 16.1

Engine Operating Weight (kg) 19.6

Dimensions L x W x H (mm) 313X376X335
