GX35

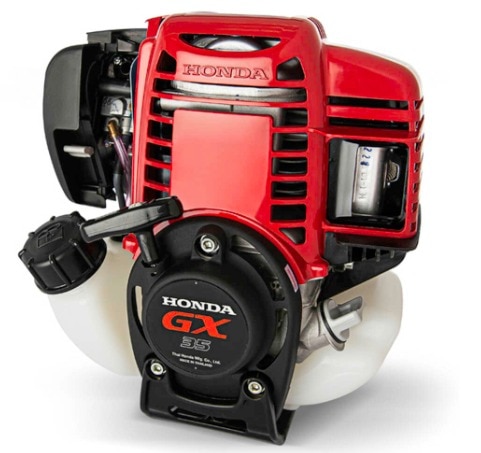

The Honda GX35 is a high-performance 4-stroke engine, delivering 1.0 kW (1.3 hp) at 7000 rpm. Known for its world-first 360° inclinable operation, it ensures optimal performance in any position, making it an ideal choice for Brush Cutters, Agriculture Sprayer.

SPECIFICATIONS

Engine

Engine

Engine Model Name GX35

Engine Type 4-Stroke, Overhead Cam Single Cylinder, Vertical type 360° rotatable

Net Power kW (hp) @ rpm 1.2 (1.6) @ 7000

Maximum Net Torque (N•m @ rpm) 1.9 @ 5500

Compression ratio 8.0 : 1

Displacement (cc) 35.8

Bore X Stroke (mm) 39 x 30

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 0.63

Ignition System Transistor Type Magneto Ignition

Lubrication System Oil Mist

Engine Oil Capacity (L) 0.1

Recommended Oil Grade SAE 10W30

Starting System Recoil Starter

Carburettor Diaphragm Type

Air Cleaner Paper Filter

Engine Dry Weight (kg) 3.46

Engine Operating Weight (kg) 4.01

Dimensions L x W x H (mm) 198 x 234 x 240

Key Features

360° Inclinable Operation

This innovative design allows the engine to function flawlessly at any angle, ensuring versatility across diverse uses.

OHC Design with Low-Noise Timing Belt

Powered by an overhead cam (OHC) system, the engine is more compact, lightweight, and durable. The maintenance-free, low-noise timing belt enhances its reliability while keeping operational noise to a minimum.

Easy Start and Superb Acceleration

With Honda's advanced technology, the GX35 ensures effortless starting and swift acceleration, providing smooth performance under any condition.

Low Fuel and Oil Consumption

Built for sustainability, this engine is incredibly fuel-efficient, with minimal oil consumption, contributing to lower operating costs.

High-Quality, Long-Term Durability

Crafted from premium materials and purpose-built components, the GX35 is designed for reliable, long-term use even in the most demanding conditions.

Eco-Friendly Compliance

The GX35 adheres to the world’s most stringent environmental regulations, ensuring a cleaner, greener performance without compromising on power.

Applications

The Honda GX35 is specially suited for:

Brush Cutters

deal for trimming and de-weeding in gardens, landscapes, and farms.

Agricultural Sprayers

Ensures reliable operation for spraying fertilizers, pesticides, and other treatments across fields.

Engine Warranty Terms & Conditions

1. Warranty Period

One year from the date of purchase for Non-Commercial use by customer.

One year from the date of purchase for Commercial/ Rental use by customer.

2. Warranty Obligation

Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.

3. Warranty Service

To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense.

4. Terms and Condition

To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.

Presentation of this warranty & free service coupon booklet.

Warranty does not include:

Normal / natural wear & tear and normal deterioration of paint or other appearances.

Failures resulting from unauthorised modifications or repairs.

Failures resulting due to not availing of free service within the stipulated time

Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.

Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.

Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.

Normal phenomena such as noise and vibrations.

Incidental or consequential damage like inconvenience or commercial loss.

Any part or labour incurred in normal maintenance services.

Failures resulting from usage of non-genuine spare part (s).
