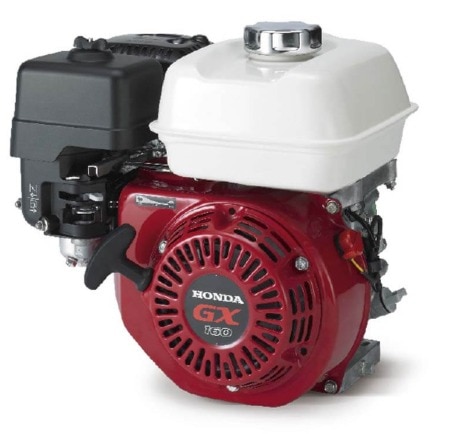

GX160

The Honda GX160 is a high-performance 4-stroke OHV petrol engine designed to deliver exceptional power and reliability across various demanding applications. With a robust 3.6 kW (4.8 HP) net power at 3600 RPM, this engine is engineered for both durability and efficiency, making it ideal for use in environments that require consistent performance and high load capabilities.

SPECIFICATIONS

Engine

Engine

Engine Model Name GX160

Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft

Net Power kW (hp) @ rpm 3.6 ( 4.8 ) @ 3600

Maximum Net Torque (N•m @ rpm) 10.3 @2500

Compression ratio 9.0 : 1

Bore X Stroke (mm) 68 x 45

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 3.1

Ignition System Transistorised type magneto ingnition system

Lubrication System Splash

Engine Oil Capacity (L) 0.58

Oil Alert Optional

Recommended Oil Grade SAE 10W30

Starting System Recoil Starter

Carburettor Horizontal Type, Butterfly Valve

Air Cleaner Dual Type, Oil Bath Type

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 15.1

Engine Operating Weight (kg) 18.6

Dimensions L x W x H (mm) 312 x 362 x 346

Key Features

Powerful and Efficient

The GX160 boasts a 3.6 kW (4.8 HP) net power output at 3600 RPM, providing robust performance for a range of applications.

Advanced OHV Design

The Overhead Valve (OHV) design enhances combustion efficiency, offering a high power-to-displacement ratio while maintaining a compact size.

Easy Starting

Equipped with an automatic decompression system and an easy-to-grip soft recoil starter handle, the GX160 ensures quick and reliable starts with minimal effort.

Durable Construction

Built with high-quality materials and purpose-built components, the GX160 guarantees long-term reliability and resistance to wear and tear.

Environmental Compliance

​​​​​​​The engine meets the world’s most stringent environmental regulations, ensuring it operates cleanly and efficiently.

Low Fuel and Oil Consumption

​​​​​​​Its compact combustion chamber and high thermal efficiency contribute to reduced fuel and oil consumption, making it cost-effective to operate.

Reduced Vibration and Noise

​​​​​​​Designed to minimize vibration and noise, the GX160 provides a smoother and quieter operating experience.

Applications of the Honda GX160

Marine Applications: Long-Tail Boats

The GX160’s 1/2 reduction mechanism is specifically developed for long-tail boats operating in harsh marine environments. This design ensures

Faster Boat Speeds

​​​​​​​The engine’s high power output enables quicker acceleration and higher speeds, essential for efficient navigation and fishing activities.

Improved Fuel Economy

​​​​​​​Its fuel-efficient design reduces operational costs, making it ideal for long-distance trips and extended use.

Reliability in Harsh Conditions

​​​​​​​The GX160 maintains high performance even in challenging conditions, such as shallow waters and rough seas.

Sub-Applications:

Mid-Range Fishing Boats: Provides reliable power for fishing activities, ensuring smooth operation and effective handling.

Seafood Transport Boats: Delivers consistent power for transporting fish and seafood, even over long distances.

Taxi Boats: Ensures dependable performance for passenger transport in areas where boat taxis are commonly used.

2. Agricultural Equipment

The GX160 is well-suited for various agricultural machinery, offering dependable power for:

Nutt Cutters

​​​​​​​Powers equipment used for harvesting nuts, providing consistent performance in agricultural settings.

Reapers

​​​​​​​Operates reaping machines efficiently, assisting in the cutting and gathering of crops.

3. Construction and Industrial Equipment

With its robust design and high output, the GX160 excels in construction and industrial applications, such as:

Go-Karts

​​​​​​​Provides reliable power for go-kart engines, ensuring a fun and exhilarating driving experience.

Concrete Cutters

​​​​​​​Powers equipment for cutting concrete, making it easier to perform precise cuts and achieve high-quality results.

Power Trowels

​​​​​​​Drives trowels used for finishing concrete surfaces, ensuring smooth and professional results.

Why Choose the Honda GX160?

The Honda GX160 is designed for users who require a reliable, high-performance engine for a variety of demanding applications. Its advanced OHV design, durable construction, and fuel-efficient operation make it an excellent choice for both marine and industrial use. Whether powering long-tail boats, agricultural equipment, or construction machinery, the GX160 delivers consistent performance and reliability, even under the most challenging conditions.

Engine Warranty Terms & Conditions

1. Warranty Period

Two year from the date of purchase for Non-Commercial use by customer.

Two year from the date of purchase for Commercial/ Rental use by customer.

2. Warranty Obligation

Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.

3. Warranty Service

To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense.

4. Terms and Condition

To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.

Presentation of this warranty & free service coupon booklet.

Warranty does not include:

Normal / natural wear & tear and normal deterioration of paint or other appearances.

Failures resulting from unauthorised modifications or repairs.

Failures resulting due to not availing of free service within the stipulated time

Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.

Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.

Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.

Normal phenomena such as noise and vibrations.

Incidental or consequential damage like inconvenience or commercial loss.

Any part or labour incurred in normal maintenance services.

Failures resulting from usage of non-genuine spare part (s).
