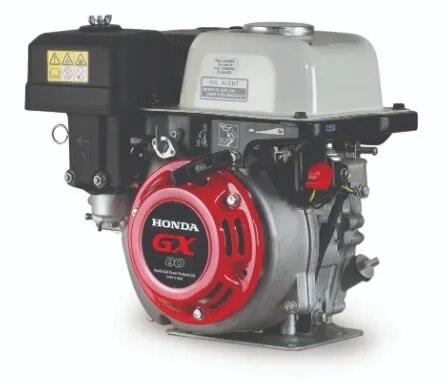

GX80

The Honda GX80 is designed for versatility and efficiency, offering 1.5 kW (2 hp) at 3600 rpm. Its advanced Overhead Valve(OHV) design is powered by a maintenance-free, low-noise, making the engine lightweight, compact, and perfect for various high-performance applications such as sugarcane juice machines, long-tailed outboard boats, concrete vibrator, and HTP Sprayer.

SPECIFICATIONS

Engine

Engine

Engine Model Name GX80

Engine Type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft

Net Power kW (hp) @ rpm 1.5 ( 2.0) @ 3600

Maximum Net Torque (N•m @ rpm) 4.5 @2500

Compression ratio 9 : 1

Displacement (cc) 79.7

Bore X Stroke (mm) 46 x 48

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 1.5

Ignition System Transistor Type Magneto Ignition

Lubrication System Splash

Engine Oil Capacity (L) 0.36

Recommended Oil Grade SAE 10W30

Starting System Recoil Starter

Carburettor Horizontal Type, Butterfly Valve

Air Cleaner Dual Type

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 11.1

Engine Operating Weight (kg) 12.5

Dimensions L x W x H (mm) 275 x 342 x 323

Key Features

OHV Design

OHV Design with Low-Noise: The GX80 features an Overhead Valve (OHV) layout, driven by a maintenance-free, low-noise. This design reduces overall engine size and weight while ensuring smooth, quiet operation, making it ideal for environments where noise control is important.

Durability & Reliability

The cast iron cylinder sleeve and high carbon steel, dual ball-bearing crankshaft ensure long-lasting durability and superior reliability, even in demanding conditions.

Low Noise Levels

The large-capacity muffler, combined with the unique OHV layout, reduces noise for better user experience and reduced sound pollution.

Fuel Efficiency & Low Emissions

A compact combustion chamber with high thermal efficiency minimizes fuel consumption and ensures compliance with the world's strictest environmental standards.

Applications of Honda GX80 Engine

Sugarcane Juice Machines:

The Honda GX80 provides smooth and reliable power, making it the perfect engine for sugarcane juice machines. Its compact design and low-noise operation ensure that juice vendors and small business owners can offer a seamless experience to customers, even in busy markets. The engine's fuel efficiency keeps operational costs low while maintaining consistent power output, enabling longer operating hours without interruptions.

Long-Tailed Outboard Boats:

In the world of water transport, the GX80 is an excellent choice for powering long-tailed outboard boats. Its high durability make it suitable for navigating various water conditions. The engine's smooth acceleration ensures efficient maneuverability, while its lightweight build helps to enhance the boat's speed and responsiveness. The low fuel consumption ensures that long voyages can be completed with fewer refueling stops, a critical advantage for both fishing and transportation activities.

Engine Warranty Terms & Conditions

1. Warranty Period

Two year from the date of purchase for Non-Commercial use by customer.

Two year from the date of purchase for Commercial/ Rental use by customer.

2. Warranty Obligation

Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.

3. Warranty Service

To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense.

4. Terms and Condition

To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.

Presentation of this warranty & free service coupon booklet.

Warranty does not include:

Normal / natural wear & tear and normal deterioration of paint or other appearances.

Failures resulting from unauthorised modifications or repairs.

Failures resulting due to not availing of free service within the stipulated time

Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.

Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.

Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.

Normal phenomena such as noise and vibrations.

Incidental or consequential damage like inconvenience or commercial loss.

Any part or labour incurred in normal maintenance services.

Failures resulting from usage of non-genuine spare part (s).
