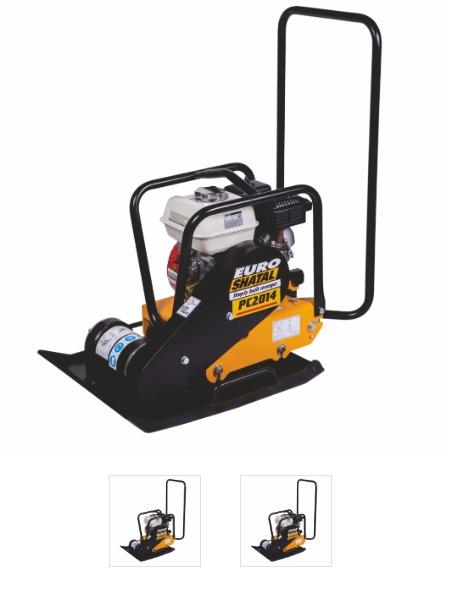

Forward and reverse compaction. Working width 50-75 cm. Self tightening clutch-for long v-belt life. Reinforced and strengthened base plate, especially designed for tough jobs. Easy to mount transport wheels. Ideal compactor for confined areas. Especially suitable for compaction in utility trenches, along highways, parking areas along foundations, walls and abutments. Handle locks in one swift motion, allowing easy transport in the upright position. Extra strong anti-vibration mounting brackets. SPECIFICATIONS Reversible Plate Compactor Frame Reversible Plate Compactor Frame Model Name RP 2414 Petrol Plate Size W x L (mm) 500 x 642 Centrifugal Force (kg) 2400 Compaction Area (m²/hr.) 600 Dry Weight (kg) 149 Country of Origin India Engine Engine Engine Model Name GX160 Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25° Net Power kW (hp) @ rpm 3.6 ( 4.8 ) @ 3600 Cont. rated power kW (hp) @ rpm 2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600 Compression ratio 9.0 : 1 Bore X Stroke (mm) 68 x 45 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 3.1 Fuel cons. at cont. rated power (L/h @ rpm) 1.4 @ 3600 Ignition System Transistor Type Magneto Ignition Engine Oil Capacity (L) 0.6 Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 15.1 Dimensions L x W x H (mm) 312 x 362 x 346

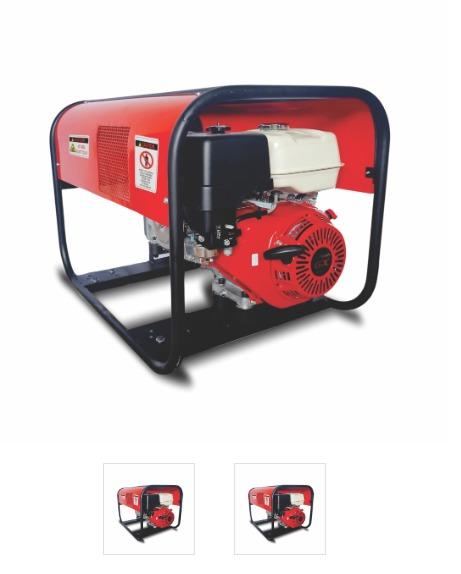

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology. SPECIFICATIONS Welder Frame Welder Frame Model Name Welder EGWG220DC Frame Type Compact Max. AC output (kVA) @ Single Phase 4 Strike Voltage (V) 65 - 85 Voltage/ Frequency (V/Hz) 230 / 50 Alternator DC Welder Electrode Diameter (mm) up to 5 Max. Welding Current (Amps) @ % Duty Cycle 220 at 35% Welding Current Adjustment Range (Amps) 40 to 200 Control Panel Manual Starting System Recoil Dimensions L x W x H (mm) 770 x 570 x 580 Engine Engine Engine Model Name GX390T2 QX Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 8.7 (11.7) @ 3600 Cont. rated power kW (hp) @ rpm 6.4 ( 8.6 ) @ 3000, 7.0 ( 9.4 ) @ 3600 Maximum Net Torque (N•m @ rpm) 26.4 @ 2500 Compression ratio 8.2 : 1 Displacement (cc) 389 Bore X Stroke (mm) 88 x 64 Fuel Tank Capacity (L) 6.10 Fuel cons. at cont. rated power (L/h @ rpm) 3.1 L/h @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Oil Alert Available Recommended Oil Grade SAE 10W-30 API SE or higher Starting System Recoil Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 31.7 Dimensions L x W x H (mm) 406 x 460 x 448

Durable & continues performance continuous performance for long hours. Petrol powered with a strong Honda GX Engine. Designed for a convenient start by any person. Backed by fuel saving 4-strock technology. SPECIFICATIONS Welder Frame Welder Frame Model Name Welder EGWG180AC Frame Type Compact Max. AC output (kVA) @ Single Phase 3 Strike Voltage (V) 46 - 60 Voltage/ Frequency (V/Hz) 230 / 50 Alternator AC Welder Electrode Diameter (mm) up to 4 Max. Welding Current (Amps) @ % Duty Cycle 180 @ 35% Welding Current Adjustment Range (Amps) 40 to 130 Control Panel Manual Starting System Recoil Dimensions L x W x H (mm) 720 x 490 x 550 Engine Engine Engine Model Name Honda GX270 Engine Type Air cooled 4-stroke OHV petrol engine, 20° inclined cylinder, horizontal shaft Net Power kW (hp) @ rpm 8.4 @ 3600 Cont. rated power kW (hp) @ rpm 4.6 ( 6.2 ) @ 3000, 5.1 ( 6.8 ) @ 3600 Maximum Net Torque (N•m @ rpm) 19.1 @ 2500 Compression ratio 8.5 : 1 Displacement (cc) 270 Bore X Stroke (mm) 77 x 58 Fuel Type Unleaded Petrol Fuel Tank Capacity (L) 5.3 Fuel cons. at cont. rated power (L/h @ rpm) 2.4 L/h @ 3600 Ignition System Digital CDI with variable ignition timing Engine Oil Capacity (L) 1.1 Oil Alert Available Recommended Oil Grade SAE 10W-30 API SE or higher Cylinder sleeve type Cast Iron Sleeve Engine Dry Weight (kg) 25.8 Dimensions L x W x H (mm) 381 x 428 x 422
