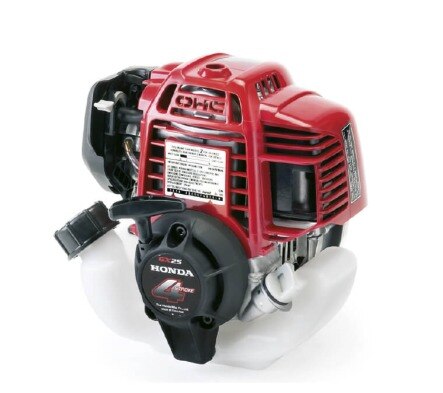

GX25

The Honda GX25 is a revolutionary 4-stroke engine, engineered to deliver top-tier performance and efficiency. It stands as the world’s first 360° inclinable engine, offering seamless operation in any position, making it ideal for a wide range of applications

SPECIFICATIONS

Engine

Engine

Engine Model Name GX25

Engine Type 4-Stroke, Overhead Cam Single Cylinder, Vertical type 360° rotatable

Net Power kW (hp) @ rpm 0.81 (1.1) @ 7000

Maximum Net Torque (N•m @ rpm) 1.25 @ 5000

Compression ratio 8.0 : 1

Displacement (cc) 25

Bore X Stroke (mm) 35 x 26

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 0.55

Ignition System Transistor Type Magneto Ignition

Lubrication System Oil Mist

Engine Oil Capacity (L) 0.08

Recommended Oil Grade SAE 10W30

Starting System Recoil Starter

Carburettor Diaphragm Type

Air Cleaner Paper Filter

Engine Dry Weight (kg) 2.9

Engine Operating Weight (kg) 3.37

Dimensions L x W x H (mm) 192 x 221 x 230

Key Features

0.7 kW (1.0 hp) @ 7000 rpm

This powerful engine offers excellent performance for demanding tasks, ensuring efficient operation

360° Inclinable Operation

The world's first engine designed to work efficiently in any orientation, providing unmatched versatility for various applications.

OHC Design

The Overhead Camshaft (OHC) system, driven by a maintenance-free, low-noise timing belt, reduces weight and enhances engine compactness.

Easy Start & Superb Performance

​​​​​​​Quick, reliable starts paired with low noise levels, superb acceleration, and smooth operation make the GX25 a user-friendly engine.

Fuel Efficiency & Low Emissions

​​​​​​​The GX25 offers low fuel and oil consumption and meets stringent environmental standards, making it an eco-friendly choice.

Durable & Reliable

​​​​​​​Constructed with high-quality materials and purpose-built components, the GX35 is designed for long-term reliability, even in tough conditions.

Applications

Brush Cutters

​​​​​​​Tackle tough weeds and overgrowth with ease using the GX25-powered brush cutters.

Agricultural Sprayers

Ensures reliable operation for spraying fertilizers, pesticides, and other treatments across fields.

Mini Tillers

​​​​​​​Ideal for soil preparation and gardening, providing the power and flexibility you need for efficient work.

With Honda’s renowned engineering, the GX25 general-purpose engine ensures consistent power, fuel efficiency, and durability for all your outdoor power equipment needs.

Engine Warranty Terms & Conditions

1. Warranty Period

One year from the date of purchase for Non-Commercial use by customer.

One year from the date of purchase for Commercial/ Rental use by customer.

2. Warranty Obligation

Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.

3. Warranty Service

To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer's risk and expense.

4. Terms and Condition

To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner's manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.

Presentation of this warranty & free service coupon booklet.

Warranty does not include:

Normal / natural wear & tear and normal deterioration of paint or other appearances.

Failures resulting from unauthorised modifications or repairs.

Failures resulting due to not availing of free service within the stipulated time

Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.

Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.

Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.

Normal phenomena such as noise and vibrations.

Incidental or consequential damage like inconvenience or commercial loss.

Any part or labour incurred in normal maintenance services.

Failures resulting from usage of non-genuine spare part (s).
