FQ650

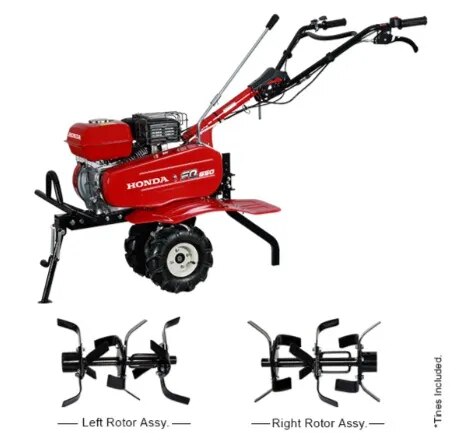

The Honda FQ650 Tiller offers powerful soil cultivation with its robust 4-stroke GP200H OHV engine, delivering 5.72 hp (4.3 kW) @ 3,600 rpm. Perfect for tilling, de-weeding, and furrow formation, it excels in vegetable fields, sugar cane plantations, cotton fields, banana plantations, flower gardens, and fruit maintenance.

SPECIFICATIONS

Tiller

Tiller

Rotor Type French Rotor

Tilling Depth Adjustment (inch) Move drag bar up and down (5 height positions)

Rear Hitch Width mm (inch) 100 (3.9 )

Rear Hitch Height mm (inch) 76 (3.0 )

Standard Handle Height (Feet) 930 (36.6 )

Handle Height Adjustment mm (inch) 815 – 1,000 (32.1 – 39.4 )

Engine to Transmission Mechanism V-belt

Clutch Type Belt Tension Type

Clutch Operation Manual Lever

Transmission Oil Capacity (L) 1.2

Recommended Transmission Oil SAE 10W-30 API SE or higher

Transmission 2 Forward, 1 Reverse Gear

Tiller Dimensions (L x W x H) mm 1475 X 650 X 1000

Dry Weight (kg) 55

Operating Weight (kg) 58

Engine

Engine

Type Code DH

Engine Model Name GP200H

Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°

Maximum Net Torque (N•m @ rpm) 12.4 @ 2500

Maximum Power kw (hp) @ rpm 4.8 (6.5) @ 3600

Compression ratio 8.5 : 1

Displacement (cc) 196

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 2.4

Engine Oil Capacity (L) 0.6

Recommended Oil Grade SAE 10W-30 API SE or higher

More Information

More Information

Product Name Tiller

Model Name FQ650

Net Quantity/Quantity Packed 1 N

Dimensions L x W x H (mm) 1475 x 650 x 1000

Max. Retail Price ₹75960.00 (inclusive of all taxes)

Manufactured by Honda India Power Products Limited., Head Office & Works: Plot No. 5, Sector-41 (Kasna), Greater Noida Industrial Development Area, District Gautam Budh Nagar, Uttar Pradesh – 201310, India Registered Office: 409, DLF Tower-B, Jasola Commercial Complex, New Delhi – 110025, India

Customer Care Head Service, Honda India Power Products Limited, Plot No. 5, Sector-41 (Kasna), Greater Noida Industrial Development Area, Distt. Gautam Budh Nagar, Uttar Pradesh-201310 Ph.No. 0120-259 0327, Toll Free 1800-11-2323, Email: ho.service@hipp.co.in

Country of Origin India

KEY FEATURES OF HONDA TILLER FQ650

1. Powerful Performance

Equipped with Honda GP200 Engine: The Honda GP200H engine delivers high power and performance for demanding tilling tasks.

High Power (4.3 kW): Provides the necessary strength for efficient soil cultivation.

Easy Start: Ensures a hassle-free start-up every time.

High Idling Stability: Maintains consistent performance during operation.

Low Vibration and Noise: Enhances operator comfort and reduces fatigue.

Low Fuel Consumption: Increases efficiency and reduces operating costs.

2. Enhanced Safety

Large-size Sub-fender: Protects from flying debris, ensuring a clean and safe work area.

OPC System: Operator Presence Control system enhances safety by stopping the engine if the operator releases the handle.

Birdcage Muffler Guard: Protects the operator from the hot exhaust, reducing the risk of burns.

3. Reliability and Durability

Proven GP200 Durability: The GP200H engine is known for its long-lasting and reliable performance.

Mud-Water Resistant Recoil Starter: Ensures reliable starting in wet and muddy conditions.

4. Easy Operation and User-Friendly Design

Light Weight (51.2 kg): Makes the tiller easy to maneuver and transport.

Height Adjustable Handlebar: Allows for customized comfort and control.

Rotor Holder: Facilitates easy storage and transport of the tiller.

Transportation Wheel: Provides easy mobility and maneuverability on various terrains.

The Honda FQ650 Tiller is designed with comprehensive safety features to ensure secure and efficient operation. From protective equipment to user-friendly conveniences, every aspect of the FQ650 prioritizes operator safety and ease of use.

KEY SAFEY FEATURES

1. Gear Shifting Gate

Convenient Control: The gear shifting gate allows for smooth and precise gear changes, enhancing control and safety during operation.

2. Birdcage Muffler Guard

Heat Protection: The birdcage muffler guard protects the operator from the hot exhaust, reducing the risk of burns and ensuring safer operation.

3. Transportation Wheel

Easy Mobility: The transportation wheel facilitates easy movement of the tiller across various terrains, minimizing the risk of strain or injury.

4. Engine Guard and Rotor Holder

Component Protection: The engine guard protects the engine from damage, while the rotor holder secures the rotors during transport, ensuring safe and secure handling.

5. Front Stand

Stable Parking: The front stand provides a stable base for the tiller when not in use, preventing accidental tipping and ensuring safe storage.

6. Large-size Sub-fender

Debris Shield: The large-size sub-fender prevents soil and debris from being thrown out of the tilling area, protecting the operator and surroundings.

7. Handlebar Height Adjustment

Customized Comfort: The adjustable handlebar height allows operators to customize the tiller to their comfort level, reducing fatigue and enhancing control.

APPLICATIONS

Vegetable Fields: Optimal soil conditions for healthy vegetable growth.

Sugar Cane Plantations: Effective tilling and weed control for higher yields.

Cotton Fields: Enhanced soil preparation for improved crop quality.

Banana Plantations: Simplified soil management for robust plant growth.

Flower Gardens: Maintains beautiful, weed-free flower beds.

Fruit Maintenance/Garden: Ensures productive and healthy fruit trees and bushes.

HONDA TILLER ATTACHEMENT *

1. Yellow Ridger Attachment*

Versatile Soil Shaping: Ideal for creating raised rows and ridges for better drainage and root development.

Improved Crop Management: Helps manage water distribution and promotes healthier plant growth.

Easy Installation: Quick and easy to install, with sturdy design for reliable performance.

2. Miracle Rotor Attachment*

Superior Soil Aeration: Provides exceptional soil aeration and mixing, ideal for tilling hard soil

Enhanced Tilling Efficiency: Achieves a finer soil texture for better seed-to-soil contact and germination.

Adaptability: Suitable for various soil types and horticultural applications.

Why Choose Honda FQ650 Tiller Attachments*?

Increased Versatility: Expands the functionality of the Honda FQ650 Tiller for different tasks.

Enhanced Efficiency: Improves the effectiveness of tilling operations, saving time and effort.

Quality and Durability: Built with high-quality materials for long-term reliability and performance.

Optimize your soil cultivation with the Honda FQ650 Tiller and its versatile attachments* for outstanding agricultural and gardening results.
