FJ500

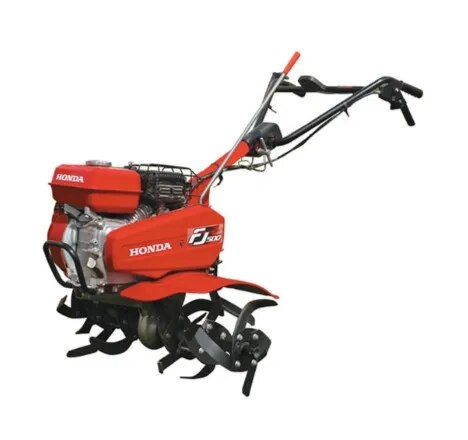

The Honda FJ500 Tiller offers an exceptional solution for soil cultivation, designed to meet the needs of horticulture farmers and gardeners. This powerful tiller is perfect for vegetable fields, sugar cane plantations, cotton, banana, flower gardens, and fruit maintenance. The Honda FJ500 is equipped with a robust 4-stroke GX160 OHV engine with a maximum Output of 4.8 HP (3.6 kW) @ 3,600 rpm delivering powerful and efficient tilling performance for various agricultural tasks.

SPECIFICATIONS

Tiller

Tiller

Rotor Type French Rotor

Tilling Depth Adjustment (inch) Move drag bar up and down (5 height positions)

Rear Hitch Width mm (inch) 100 (3.9 )

Rear Hitch Height mm (inch) 75 (3.0 )

Standard Handle Height (Feet) 1,050 (41.3 )

Handle Height Adjustment mm (inch) 935 – 1,150 (36.8 – 45.3 )

Engine to Transmission Mechanism V-belt

Clutch Type Belt Tension Type

Clutch Operation Manual Lever

Transmission Oil Capacity (L) 0.95

Recommended Transmission Oil SAE 10W-30 API SE or higher

Transmission 2 Forward, 1 Reverse Gear

Tiller Dimensions (L x W x H) mm 1340 X 900 X 1080

Dry Weight (kg) 55

Operating Weight (kg) 58

Engine

Engine

Type Code RD

Engine Model Name GX160H1

Engine Type 4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°

Maximum Net Torque (N•m @ rpm) 10.3 @ 2500

Maximum Power kw (hp) @ rpm 3.6 (4.9) @ 3600

Compression ratio 8.5 : 1

Displacement (cc) 163

Fuel Type Unleaded Petrol

Fuel Tank Capacity (L) 2.4

Engine Oil Capacity (L) 0.58

Recommended Oil Grade SAE 10W-30 API SE or higher

More Information

More Information

Product Name Tiller

Model Name FJ500

Net Quantity/Quantity Packed 1 N

Dimensions L x W x H (mm) 1340 x 900 x 1080

Max. Retail Price ₹104923.00 (inclusive of all taxes)

Manufactured by Honda Power Products (China) Co., Ltd, No.1, Guan Yue South Road, Yubei District, Chongqing, China – 400015.

Imported & marketed by Honda India Power Products Limited., Head Office & Works: Plot No. 5, Sector-41 (Kasna), Greater Noida Industrial Development Area, District Gautam Budh Nagar, Uttar Pradesh – 201310, India Registered Office: 409, DLF Tower-B, Jasola Commercial Complex, New Delhi – 110025, India

Customer Care Head Service, Honda India Power Products Limited, Plot No. 5, Sector-41 (Kasna), Greater Noida Industrial Development Area, Distt. Gautam Budh Nagar, Uttar Pradesh-201310 Ph.No. 0120-259 0327, Toll Free 1800-11-2323, Email: ho.service@hipp.co.in

Country of Origin China

Key Features of the Honda FJ500 Tiller

High-Performance Engine: The Honda FJ500 is equipped with a robust 4-stroke GX160 OHV engine, delivering powerful and efficient tilling performance for various agricultural tasks.

Durable Construction: Built with high-quality materials, the FJ500 ensures long-lasting durability and reliability, even under challenging conditions.

Adjustable Tilling Width: The tiller offers an adjustable tilling width, allowing you to customize the width according to your specific needs for optimal soil preparation.

Ergonomic Design: Featuring an adjustable handlebar, the Honda FJ500 Tiller provides comfort and ease of use, reducing operator fatigue during extended periods of operation.

Easy Maneuverability: The tiller is designed for easy maneuverability, making it simple to navigate through various terrains and tight spaces.

Safety Features: Equipped with advanced safety features, the Honda FJ500 ensures safe operation, protecting both the operator and the machine.

Applications

Vegetable Fields: Ideal for preparing and maintaining vegetable gardens, ensuring optimal soil conditions for healthy growth.

Sugar Cane Plantations: Facilitates efficient tilling and weed control in sugar cane fields, promoting better yield.

Cotton Fields: Enhances soil preparation and maintenance in cotton plantations, leading to improved crop quality.

Banana Plantations: Simplifies soil management in banana fields, supporting robust plant growth.

Flower Gardens: Keeps flower beds well-maintained, free of weeds, and ready for beautiful blooms.

Fruit Maintenance/Garden: Aids in the care of fruit trees and bushes, ensuring productive and healthy plants.

Why Choose the Honda FJ500 Tiller?

The Honda FJ500 Tiller stands out as a top-tier choice for horticulture farmers and gardeners due to its powerful engine, durable construction, and user-friendly design. Whether you're managing a small garden or a large agricultural operation, the FJ500 provides the efficiency and reliability needed for outstanding results.
